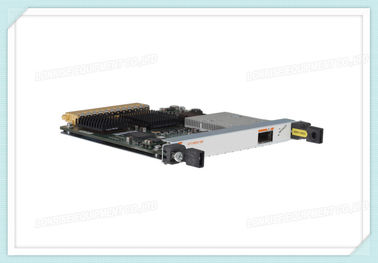

Cisco 7600 SPA-1X10GE-L-V2 SPA Card 1-Port 10GE LAN-PHY Shared Port Adapter

SPA-1X10GE-L-V2 Specifications

• Cisco Catalyst 6500 Series Switches
• Cisco 7600 Series Routers
• Cisco 12000 Series Routers
• Cisco XR 12000 Series Routers
• Cisco ASR 1000 Series Router
• Cisco CRS Carrier Routing System
• Cisco 10000 Series Router

SPA status-Bicolor green and amber LEDs encode the SPA status as follows:
• LED off-SPA is powered off
• LED amber-SPA is powered on and initializing
• LED green-SPA is powered on and operational
In addition to the status LED, the SPAs also have a bicolor LED dedicated to each port to indicate port status. The green and amber LEDs encode the port status as follows:
• LED off-Port is not activated by software
• LED amber-Port is activated by software, but there is a problem with the Ethernet link
• LED green-Port is activated by software, and there is a valid Ethernet link

• Full-duplex operation
• 802.1Q VLAN termination
• 802.1ad QinQ termination (stacked VLAN processing)
• Jumbo frames support (9188 bytes)
• Support for command-line interface (CLI)-controlled online insertion and removal (OIR)
• 802.3x flow control
• Bridge protocol data unit (BPDU), Cisco Discovery Protocoland VLAN Trunking Protocol (VTP) filtering
• Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) Tunneling
• Layer 2 access list (MAC address-based filtering)
• Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q
• Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress, and destination MAC accounting on the egress)
• Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port
• Per-port byte and packet counters for policy drops; oversubscription drops; cyclic-redundancy-check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
• Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets
• Per-port byte counters for good bytes and dropped bytes
Other software features supported:
• Ethernet over Multiprotocol Label Switching (EoMPLS)
• QoS
• Hot Standby Router Protocol (HSRP)
• Virtual Router Redundancy Protocol (VRRP)

Network management:
• Field-replaceable XFP modules
• Host-system CLI
• Simple Network Management Protocol (SNMP)
Inventory- and asset management-related MIBs:
• Entity-MIB (RFC 2737)
• Cisco-entity-asset-MIB
Fault management:
• Cisco-entity-field-replaceable unit (FRU)-control-MIB
• Cisco-entity-alarm-MIB
• Cisco-entity-sensor-MIB
Physical interface management:
• IF-MIB
• Etherlike-MIB (RFC 2665)
Other MIBs:
• Remote Monitoring (RMON)-MIB (RFC 1757)
• Cisco-class-based-QoS-MIB
• MPLS-related MIBs
• Ethernet MIB/RMON

• Weight: 0.75 lb (0.34 kg)
• Height: 0.8 in. (2.03 cm) (single height)
• Width: 6.75 in. (17.15 cm)
• Depth: 7.28 in. (18.49 cm)

• Storage temperature: -38 to 150°F (-40 to 70°C)
• Operating temperature, nominal: 32 to 104°F (0 to 40°C)
• Operating temperature, short term: 32 to 131°F (0 to 55°C)
• Storage relative humidity: 5 to 95% relative humidity
• Operating humidity, nominal: 5 to 85% relative humidity
• Operating humidity, short term: 5 to 90% relative humidity
• Operating altitude: -60 to 4000 meters

Safety
• UL 60950-1
• CSA C22 No. 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• 21 CRF 1040
EMC
• CFR 47, FCC Part 15-Class A
• ICES 003-Class A
• CISPR 22 Class A
• EN 55022 Class A
• EN 300386 Class A
• AS/NZS Class A
• VCCI-Class B
• EN 50082-1
• EN 55024
• IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air)
• IEC/EN61000-4-3 Radiated Immunity (10 V/m)
• IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal)
• IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM)
• IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor)
• IEC/EN61000-4-5 Surge DC Port (1 kV)
• IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms)
• IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m)
• IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
Telecom
• IEEE 802.3ae (10 Gigabit Ethernet interface SPA)
Industry Standards
The Cisco 1-Port 10-GE SPA is designed to meet the following requirements (some qualifications are currently in progress):
• SR-3580-Network Equipment Building Standards (NEBS): Criteria levels (Level 3 compliant)
• GR-63-CORE-NEBS: Physical protection
• GR-1089-CORE-NEBS EMC and safety
