Product Details:
|
| Model: | SM-X-6X1G | Name: | SM-X-6X1G - Cisco Ethernet WAN Service |
|---|---|---|---|
| Keyword: | Ethernet WAN Module | Detail: | 6-port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module |
| Cisco 4000 Series ISR Support: | Platforms With SM-X Slot | Weight: | 872 Grams |
| Dimensions (H X W X D): | 1.57 X 8.11 X 8.15 In (40 X 206 X 207 Mm) | Auto-switchover And Auto-failover: | Yes |
| High Light: | Dual Mode Gigabit Ethernet WAN,High Density Gigabit Ethernet WAN,6 Port Cisco SPA Card |
||
Cisco SM - X - 6X1G 6-Port dual- mode SFP High-Density Gigabit Ethernet WAN Service
M-X-6X1G Overview
Cisco® Gigabit Ethernet WAN Module SM-X-6X1G brings high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.
Quick Spec

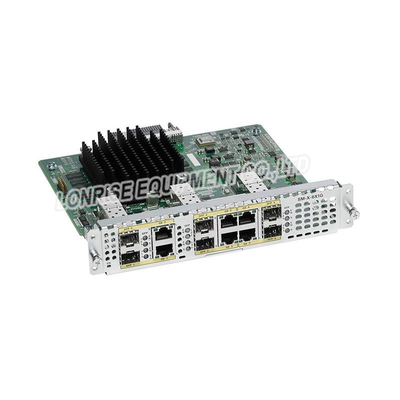

The figure shows the appearance of SM-X-6X1G.
| Product Number | SM-X-6X1G |
| Product Description | 6-port Gigabit Ethernet, dual-mode GE/SFP, SM-X Module |
| Form Factor | Single-wide Enhanced Service Module (SM-X) |
| Dimensions (H x W x D) | 1.57 x 8.11 x 8.15 in (40 x 206 x 207 mm) |
| Weight | 872 grams |
Compare to Similar Items
Table 3 shows the comparison between SM-X-6X1G and NIM-2GE-CU-SFP.
| Product Number | SM-X-6X1G | NIM-2GE-CU-SFP |
| Product Description | 6-port Gigabit Ethernet, dual-mode GE/SFP, SM-X Module | 2-port Gigabit Ethernet, dual-mode GE/SFP, Network Interface Module |
| Dimensions (H x W x D) | 1.57 x 8.11 x 8.15 in (40 x 206 x 207 mm) | 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm) |
| Weight | 872 grams | 252 grams |
SM-X-6X1G Specifications |
|
| Product Number | SM-X-6X1G |
| Product Description | 6-port Gigabit Ethernet, dual-mode GE/SFP, SM-X Module |
| Form Factor | Single-wide Enhanced Service Module (SM-X) |
| Cisco 4000 Series ISR support | Platforms with SM-X slot |
| Auto-switchover and auto-failover | Yes |
| Input packet classification on module | Yes |
| MACsec support (IEEE 802.1AE) | No |
| Dimensions (H x W x D) | 1.57 x 8.11 x 8.15 in (40 x 206 x 207 mm) |
| Weight | 872 grams |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -38 to 150°F (-40 to 70°C) |
| Relative humidity | 5 to 95% |
| Operating humidity | 5 to 85% |
