Product Details:
|
| Material: | Iron SFP-10G-LR | Condition: | NIB And Used |
|---|---|---|---|
| Branch: | Cisco SFP-10G-LR | Type: | Optical Transceriver |
| Port Structure: | The Modularity | Transmission Rate: | 10/100/1000Mbps |
| The Path: | Fiber Channel | Tested: | New Sealed Box |
| Highlight: | cisco switch fiber module,cisco fiber transceiver |
||

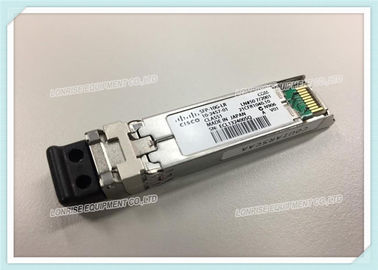

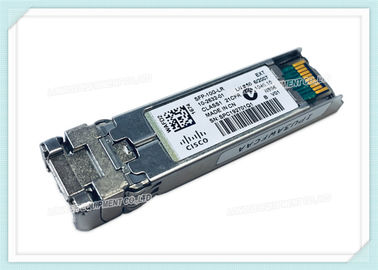

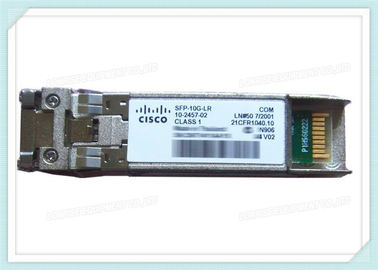

The Cisco® S-Class 10GBASE SFP+ modules (Figure 1) offer customers a variety of 10 Gigabit Ethernet connectivity options optimized for Enterprise and data center applications. S-Class optics are available for the most common reaches needed for these applications.
Main features of Cisco 10GBASE SFP+ modules include:
● Smallest 10G form factor
● Commercial temperature (0 to 70°C) only
● Supports 10GBASE Ethernet only
● Hot-swappable input/output device that plugs in to an Ethernet SFP+ port of Cisco platforms
● Provides flexibility of interface choice
● Supports digital optical monitoring capability
● Cisco quality identification (ID) feature that enables a Cisco platform to identify - optics supported by Cisco technology
● Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
| Media Type: | Single-Mode Fiber (SMF) |
| TX Wavelength: | 1310 nm. |
| RX Wavelenght: | 1310 nm. |
| Minimum Optical Budget: | 9 dB |
| Maximum Distance: | 10km/20km |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power: | -5 dB |
| Maximum Transmitting Power: | 1 dB |
| Receiver Sensitivity: | -14 dBm |
| Receiver Overload: | 0.5 dBm |
| Dispersion: | 140-160 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
10G-SFP-20 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable
It has minimum guaranteed optical budget of 9 dB, with in most cases is enough to reach about 20 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 10G-SFP-20 operates in Standard 0°-70°C temperature range and has Double LC interface.
Quality and standards are the foundation of LONRISE. We are dedicated to providing customers with outstanding, standards-compliant products and services. LONRISE has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
