Overview

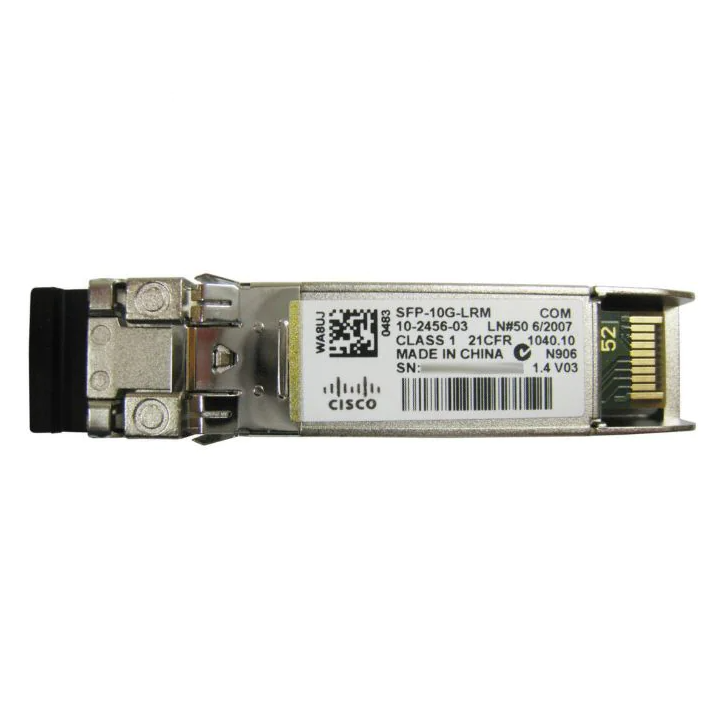

The SFP-10G-LRM Cisco compatible SFP+ transceiver module is a high-performance 10G optical networking solution designed for reliable and stable Ethernet transmission over multimode fiber (MMF) and legacy fiber infrastructure. Operating at a 1310nm wavelength with LC duplex interface, it supports distances of up to 220 meters, making it ideal for enterprise networks, data centers, and switch-to-switch connectivity.
Fully compliant with IEEE 10GBASE-LRM standards, this module ensures seamless interoperability with Cisco switches, routers, and other SFP+ compatible networking devices. It offers low power consumption, hot-pluggable functionality, and built-in Digital Optical Monitoring (DOM) for real-time diagnostics, helping network administrators maintain high performance and reduce downtime.
Product Features
- 10G data rate (10.3125 Gbps)
- 1310nm wavelength for stable long-reach performance
- LC duplex optical interface
- Supports up to 220m transmission distance
- Compatible with multimode fiber (OM1/OM2/OM3)
- Hot-swappable SFP+ form factor
- Low power consumption (~1W)
- Built-in DOM monitoring (temperature, voltage, TX/RX power)
- Fully compliant with IEEE 10GBASE-LRM standard
- Cisco compatible and widely interoperable with major network brands
Technical Specifications
| Parameter |
Specification |
| Form Factor |
SFP+ |
| Data Rate |
10.3 Gbps |
| Wavelength |
1310nm |
| Maximum Distance |
220m (MMF) |
| Connector Type |
LC Duplex |
| Fiber Type |
MMF / partial SMF support |
| Power Consumption |
~1W |
| Digital Diagnostics |
DOM Supported |
| Operating Temperature |
0°C to 70°C |
| Compliance |
IEEE 10GBASE-LRM |
Compatibility
This SFP-10G-LRM module is compatible with a wide range of Cisco networking equipment, including:
- Cisco Catalyst Switch Series
- Cisco Nexus Data Center Switches
- Cisco ASR Routers
- Any networking devices with SFP+ 10G ports supporting 1310nm optics
It is also widely compatible with third-party switches and routers that support standard SFP+ transceivers.
Application Scenarios
- Enterprise campus network backbone connections
- Data center switch interconnects
- Server-to-switch 10G Ethernet links
- Legacy fiber infrastructure upgrades
- High-bandwidth aggregation networks
SFP-10G-LRM vs SFP-10G-SR Comparison
Understanding the difference helps you choose the right module for your network:
| Feature |
SFP-10G-LRM |
SFP-10G-SR |
| Wavelength |
1310nm |
850nm |
| Fiber Type |
OM1/OM2/OM3 |
OM3/OM4 |
| Transmission Distance |
Up to 220m |
Up to 300m |
| Use Case |
Legacy fiber upgrades |
Modern short-range MMF networks |
| Cost Efficiency |
Higher compatibility |
Lower cost |
Recommendation:
- Choose LRM for legacy multimode fiber environments
- Choose SR for new high-density data center deployments
FAQ
What is SFP-10G-LRM used for?
It is used for 10G Ethernet connections over multimode fiber, especially in environments where existing fiber infrastructure is reused.
Is this module compatible with Cisco devices?
Yes. It is fully compatible with Cisco switches, routers, and other devices that support SFP+ 10G interfaces.
Do I need a mode conditioning patch cord?
- Required for OM1/OM2 fiber
- Optional for OM3/OM4 fiber
What is the maximum distance supported?
The module supports up to 220 meters over multimode fiber, depending on fiber quality and network conditions.
Does it support DOM monitoring?
Yes. It supports Digital Optical Monitoring, including:
- Optical power levels (TX/RX)
- Temperature
- Voltage
- Bias current
Can it work with single-mode fiber?
In some controlled scenarios, it may operate over short distances on SMF, but it is primarily designed for multimode fiber.
What is the difference between SFP and SFP+?
SFP supports up to 1G, while SFP+ supports 10G Ethernet. This module is an SFP+ 10G device and is not backward compatible with standard SFP ports.
Quality Assurance
All modules are:
- 100% tested before shipment
- Fully compliant with industry standards (CE, FCC, RoHS)
- Hot-swappable for zero downtime replacement
- Backed by warranty and technical support
