Product Details:
|
| Model: | ISR4331/K9 | Name: | Opnsense |
|---|---|---|---|
| Key Words: | What Is A Firewall | Detail: | Cisco 4000 Router, 100Mbps-300Mbps System Throughput, 3 WAN/LAN Ports, 2 SFP Ports, Multi-Core CPU |
| Aggregate Throughput: | 100 Mbps To 300 Mbps | Total Onboard WAN Or LAN 10/100/1000 Ports: | 3 |
| RJ-45-based Ports: | 2 | SFP-based Ports: | 2 |
| High Light: | Cisco SPA Card 4000 Router,ISR4331 Cisco SPA Card,Cisco SPA Card Network Firewall |
||

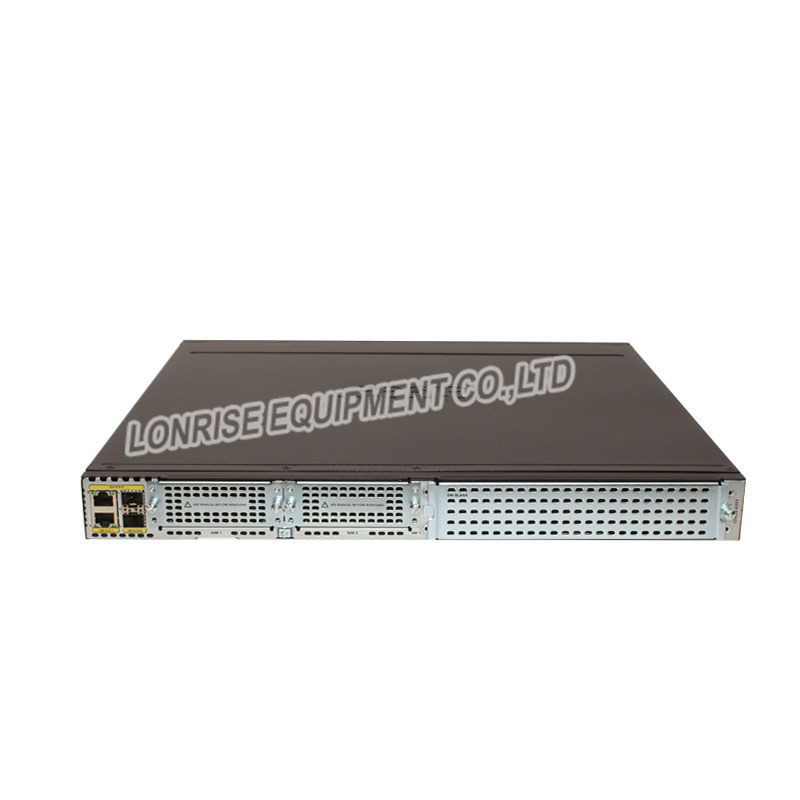

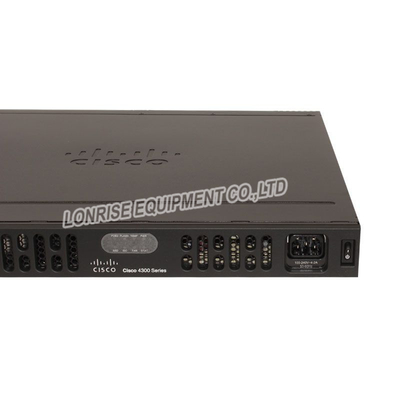

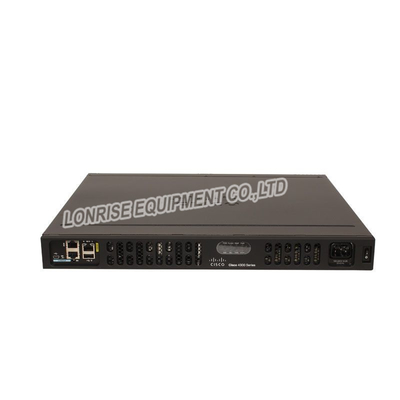

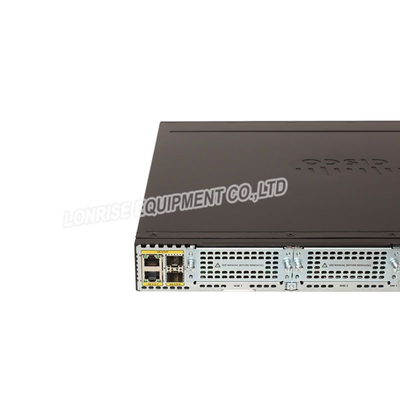

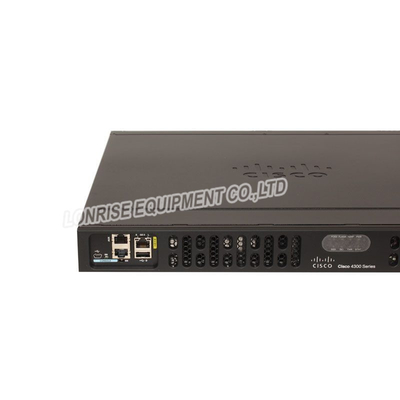

Cisco 4000 Router ISR4331 (3GE,2NIM,1SM,4G FLASH,4G DRAM,IP Base) network firewall
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.
| Product Code | Cisco ISR4331/K9 |
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module (SM-X) slot | 1 |
| NIM (Network Interface Modules) slots | 2 |
| Onboard ISC slot | 1 |
| Memory | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 4 GB (default) / 16 GB (maximum) |
| Power-supply options | Internal: AC and PoE |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 44.45 x 438.15 x 438.15 mm |
| Package Weight | 12.96 Kg |
| Technical Specifications | ISR4461/K9 | ISR4451-X/K9 | ISR4431/K9 | ISR4351/K9 | ISR4331/K9 | ISR4321/K9 | ISR4221/K9 |
| Aggregate Throughput | 1.5Gbps |
1 Gbps to 2 Gbps |
500 Mbps to 1 Gbps |
200 Mbps to 400 Mbps |
100 Mbps to 300 Mbps |
50 Mbps to 100 Mbps |
35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
| RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
| SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
| Enhanced service-module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
| Doublewide service-module slots | 2 | 1 (assumes no singlewide SM-X modules installed) | 0 | 1 (assumes no singlewide SM-X modules installed) | 0 | 0 | 0 |
| NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
