|Type:||Cisco Networking Switch||PN:||WS-C2960S-24PS-L|
|Details:||Netwoking Switch||Data Link Protocol:||Switch Managed|
|Model Number::||Cisco Switches||Certification:||CE,FCC,ISO,ROHS|
optical ethernet switch,
poe ethernet switch

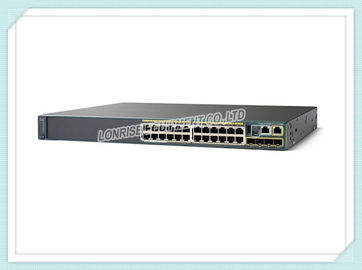

Cisco Catalyst WS-C2960S-24PS-L Gigabit PoE+ IOS Switch GigE PoE 370W 4 x SFP LAN Base
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read more
Type: Cisco switch
Product Line: Cisco Catalyst Brand:
Part Number: WS-C2960S-24PS-L Model:
Country/Region of Manufacture: United States MPN:
Product Name: WS-C2960S-24PS-L Layer: 2
Max. Data Transfer Rate: 1000Mbps/1Gbps Number of Network Ports: 24
Network Management Type: Fully Managed Number of Ports: 24
Form Factor: Standalone Device Type: Ethernet Switch
Number of LAN Ports: 24 Manufacturer: Cisco Systems
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s) UPC:
Does not apply
The Cisco Catalyst 2960S Series Switches are designed to be used in midmarket business offices with networks that are looking for lower operational costs. While these switches do not break the bank, they are also convenient to use because they are easy to operate while offering highly secure business operations and improved sustainability. The borderless network experience means using these switches is seamless. With higher speeds, these switches use Power over Ethernet Plus (PoE+), which is what gives them fast Ethernet access connectivity. When you need to backup files, use the USB for storage, distribution, and simplified operations. The Cisco Catalyst 2960S Series Switches include: the Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and; the Cisco Catalyst 2960S Series with fixed-configuration access switches.
Form Factor Rack-Mountable
Ports Qty 24
Data Transfer Rate 88000 Mbps
Data Link Protocol Ethernet, Fast Ethernet (100-Mbit/s), Gigabit Ethernet (1000-Mbit/s)
Other Features ARP support, Access Control List (ACL) support, BOOTP support, Broadcast Storm Control, DHCP snooping, DHCP support, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, High Availability, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 switching, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Spanning Tree Plus (PVST+), PoE+, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X), dynamic IP address assignment, load balancing, power over Ethernet (PoE)
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Networking Type Switch
Connectivity Technology Wired
Switching Protocol Ethernet
Remote Management Protocol FTP, HTTP, HTTPS, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet (PoE) Yes
MAC Address Table Size 8K entries
Interfaces 1 x USB - 4 pin USB Type A, 1 x management - Ethernet 10Base-T/100Base-TX - RJ-45, 1 x management - console - RJ-45, 1 x management - console - mini-USB Type B, 24 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Power Source AC 120/230 V ( 50/60 Hz )
Power Supply Power supply - internal
Encryption Algorithm SSL
Flash Memory 64 MB flash
RAM Memory 128 MB
Width 17.5 in.
Height 1.8 in.
Depth 15.2 in.
Weight 13 lbs
Enclosure Type Rack-mountable - 1U
Humidity Range Operating (Range) 10 - 95%
Min Operating Temperature 23 ˚F
Rack Mounting Kit Optional
One year warranty:
All of our Cisco products with one year manufacture warranty or smartnet free for you buying smartnet at you local Cisco.
Faster Delivery and Rich export experience:
We can delivery your order all over the world by DHL, UPS, FedEx. in 3-5days with Rich experience in export to avoid your worries.
Our Cisco engineer offering 24 * 7 mail professional supports.
Network designing and solutions for big ICT projects.
Consultancy, configuration, troubleshooting, etc for SMB.
Virieties of payment options:
We can accept the payment via "Wire ransfer", "Paypal", "West Union". ect.
Contact Person: Laura
