Cisco Catalyst C1300-24XS 24-Port 10G Managed Layer 3 Switch

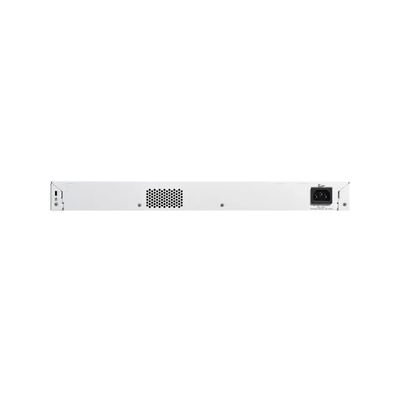

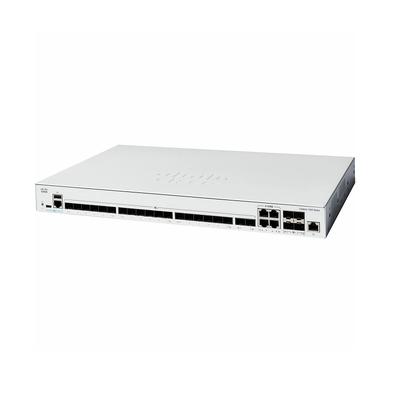

Large Image : Cisco Catalyst C1300-24XS 24-Port 10G Managed Layer 3 Switch

Product Details:

Place of Origin:	CHINA
Brand Name:	CISCO
Certification:	CE
Model Number:	C1300-24XS

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	NEW IN BOX
Delivery Time:	1-2 DAYS
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	50 UNITS/MONTH

Contact Now

Cisco Catalyst C1300-24XS 24-Port 10G Managed Layer 3 Switch

Description

Product Name:	Cisco Ethernet Switches	Model:	C1300-24XS
Shipment:	DHL/Fedex	Payment:	TT/Paypal
Condition:	NEW	Warranty:	1 Year
Lead Time:	1~3 Days	Keyword:	C1300-24XS
Highlight:	Cisco Catalyst C1300-24XS 10G switch , 24-port managed Layer 3 switch , Cisco Ethernet switch 10G

Quick Specs

Feature / Spec	Specification Details
Device Model	Cisco Catalyst C1300-24XS
Switching Capacity	480 Gbps
Forwarding Rate	357.14 Mpps (64-byte packets)
Total 10G Ports	24 Ports total
Port Configuration	20 x 10GE SFP+ ports, 4 x 10G RJ-45/SFP+ combo ports
Management Type	Fully Managed Layer 3 Switch
Processor & RAM	ARM Dual-Core 1.4 GHz, 1 GB DDR4 RAM, 512 MB Flash
Form Factor	Rack-mountable (1U height)

Full Technical Parameters (Detailed Specifications)

Specification Category	Technical Parameters
Interfaces / Ports	• 20 x 10GBase-X SFP+ fixed fiber ports • 4 x 10GBase-T / SFP+ combo ports (Copper or Fiber) • 1 x RJ-45 console port • 1 x USB Type-C console port & 1 x USB Type-A port • 1 x Gigabit Ethernet out-of-band management port
Performance & Capacity	• Switching Bandwidth: 480 Gbps • Forwarding Performance: 357.14 Mpps • Packet Buffer: 1.5 MB • MAC Address Table: Up to 16,000 entries • Jumbo Frame Support: Up to 9,000 bytes
Layer 2 & Layer 3 Features	• Routing Protocols: Static IP routing, RIPv2, Policy-Based Routing (PBR), IGMPv2/v3, MLDv2 • VLAN Support: Up to 4,093 VLANs simultaneously (Port-based, 802.1Q, MAC, and Protocol-based) • Link Aggregation: Up to 8 groups, 8 ports per group (LACP) • Spanning Tree: STP, RSTP, MSTP, and PVST+ / RPVST+
Stacking Capabilities	• Front Panel Stacking: Support for up to 8 units in a stack configured under a single IP address
Security & Reliability	• Access Control Lists (ACLs): Up to 1,000 rules • Security Framework: IEEE 802.1X, RADIUS/TACACS+, Web-based authentication • Mitigations: DHCP Snooping, IP Source Guard, Dynamic ARP Inspection (DAI), and BPDU Guard • Redundancy: Dual image support for resilient software updates
Management Options	• Cisco Business Dashboard, Cisco Catalyst Center, CLI, Web UI (HTTP/HTTPS), SNMP v1/v2c/v3, SSH, SCP
Power & Electrical	• Input Voltage: AC 100–240V, 50–60 Hz (Internal power supply) • Power Consumption: ~49.46W (Max operational load)
Environmental & Dimensions	• Dimensions (W x D x H): 17.5 x 13.8 x 1.7 in (445 x 350 x 44 mm) • Weight: 9.15 lbs (4.15 kg) • Operating Temperature: 23°F to 122°F (-5°C to 50°C)

Product Overview

The Cisco Catalyst C1300-24XS is a fixed, enterprise-grade, fully managed Layer 3 switch engineered to deliver high-density 10-Gigabit connectivity for small-to-medium-sized businesses, campus branch offices, and enterprise data center environments.

Designed to remove network bottlenecks, the C1300-24XS features 24 total high-speed 10G ports—including 20 dedicated 10G SFP+ optical slots and 4 flexible 10G copper/SFP+ combo ports. Powered by an ARM dual-core 1.4 GHz processor paired with 1 GB of DDR4 RAM, it provides robust non-blocking line-rate performance with a switching capacity of 480 Gbps.

Key highlights of the switch include advanced Layer 3 static and dynamic routing capabilities, comprehensive security safeguards (such as IEEE 802.1X, DHCP snooping, and IP source guard), and physical front-panel stacking support for up to eight units to simplify management. Managed effortlessly via the intuitive Cisco Business Dashboard or industry-standard CLI, the C1300-24XS delivers exceptional reliability, low latency, and future-proof scalability for demanding application workloads, cloud virtualization, and modern corporate environments.

Cisco Catalyst C1300-24XS 24-Port 10G Managed Layer 3 Switch
