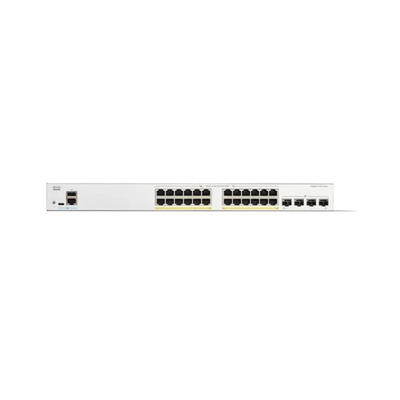

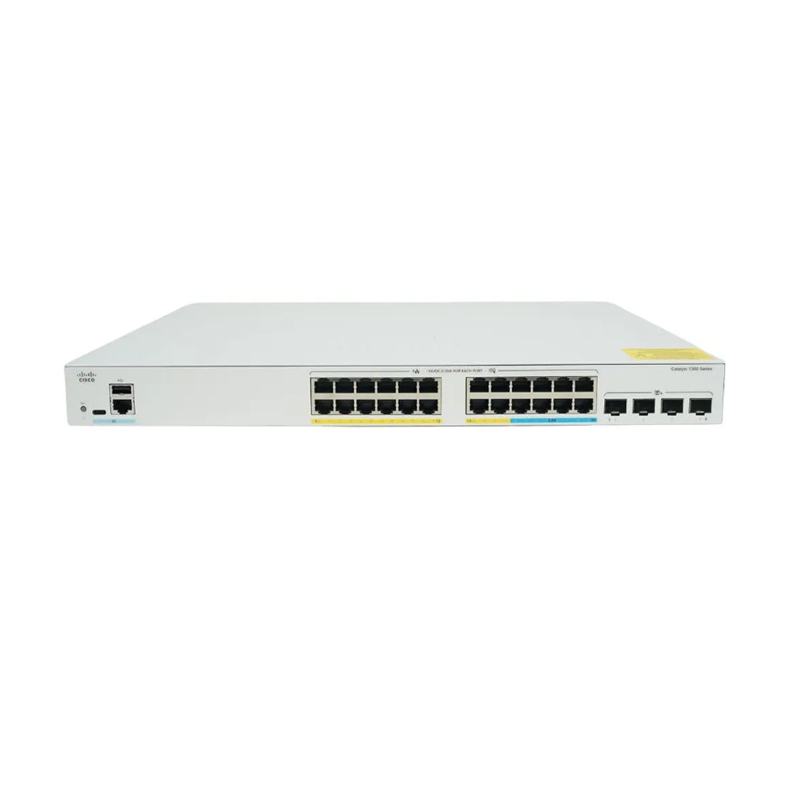

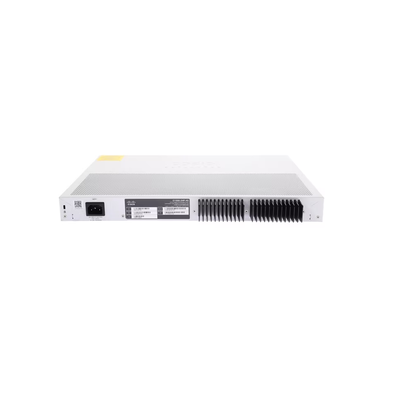

Cisco C1300-24P-4G Catalyst 1300 24-Port Gigabit PoE+ Switch

Note: Confirm the exact software features and hardware revision against the manufacturer's documentation before publishing a final technical specification.

The C1300-24P-4G provides 24 Gigabit PoE+ access ports and four Gigabit SFP uplinks. Cisco specifies a 195W total PoE budget for this model. Actual power delivery depends on the combined power consumption of connected devices.

The Cisco C1300-24P-4G is a managed Gigabit Ethernet switch designed for small and medium-sized businesses, branch offices, retail environments, and enterprise edge networks. Part of the Cisco Catalyst 1300 Series, it combines 24 Gigabit Ethernet access ports with Power over Ethernet Plus (PoE+) and four Gigabit SFP uplink interfaces.

With PoE+ support, the C1300-24P-4G can deliver both network connectivity and electrical power to compatible devices through a single Ethernet cable. This simplifies the deployment of IP phones, wireless access points, and IP surveillance cameras while reducing the need for separate power adapters at each endpoint.

Its 195W PoE power budget supports a range of connected devices, subject to their individual power requirements. The four Gigabit SFP uplinks provide fiber connectivity options for connections to aggregation switches, distribution networks, or other compatible network equipment.

Key benefits include:

• 24 Gigabit Ethernet ports: Connect computers, printers, IP phones, access points, and other Ethernet devices.

• PoE+ convenience: Supply data and power over one cable to compatible powered devices.

• 195W PoE budget: Allocate power across connected endpoints according to deployment requirements.

• Four Gigabit SFP uplinks: Support compatible fiber-optic uplink connections.

• Managed network capabilities: Help administrators configure and monitor network access, VLANs, traffic prioritization, and supported security policies.

• Flexible business deployment: Suitable for office networks, retail stores, classrooms, and branch locations.

The Cisco C1300-24P-4G is a practical option for businesses seeking managed Gigabit connectivity and integrated PoE+ without requiring 10 Gigabit uplinks.

Which model should you choose?

• Choose the C1300-24P-4G if your network needs 24 Gigabit access ports, a 195W PoE budget, and Gigabit fiber uplinks.

• Choose the C1300-24FP-4G if your connected devices require a higher total PoE budget.

• Choose the C1300-24P-4X if your network needs 10 Gigabit SFP+ uplinks while retaining 24 PoE+ access ports.

Always confirm the uplink speed, power budget, and compatibility requirements before ordering.

The Cisco C1300-24P-4G is used to connect and manage Ethernet devices in small and medium-sized business networks. Typical applications include office connectivity, IP telephony, wireless access points, and IP surveillance systems.

Yes. All 24 access ports support PoE+ with a total switch PoE power budget of 195W. The actual number of devices that can be powered simultaneously depends on their individual power consumption.

Yes. It features four Gigabit SFP uplink interfaces for compatible fiber-optic connectivity. Select SFP transceivers according to the required fiber type, transmission distance, wavelength, and link speed.

The main difference is the PoE power budget. The C1300-24P-4G provides 195W, while the C1300-24FP-4G provides a higher budget of 375W. Both models feature 24 Gigabit Ethernet ports and four Gigabit SFP uplinks.

It can serve as an access-layer switch in branch offices, small enterprise deployments, and other business networks. For installations requiring 10 Gigabit uplinks, higher port density, or more advanced network architecture, compare it with other Catalyst models before purchasing.

Provide your required port count, PoE power requirements, uplink speed, fiber type, and connected device models. These details help determine whether the C1300-24P-4G meets your network requirements.

Before placing an order, ask the supplier to confirm:

• Product model and hardware revision.

• Product condition: new, refurbished, or used.

• Included accessories and power components.

• Warranty duration and return or replacement terms.

• Shipping lead time and export packaging.

• Technical assistance for initial setup and compatibility checks.
