Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage

Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage
Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage

Large Image :  Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: C9300-24T-A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discuss
Packaging Details: common package
Delivery Time: 2-3days
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 50

Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage

Description
Branch: Cisco Model: C9300-24T-A
Port: 24 X 10/100/1000 Advanced Switching: Layer 3
Manageable: Yes Warranty: New And Original With 1 Year
High Light:

optical ethernet switch

,

poe ethernet switch

Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage





1. Overview



The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24T-A is 24-port data only, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.







2. Specifications





C9300-24T-A Specification

Part Number C9300-24T-A
Product Description Catalyst 9300 24-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24
Default AC power supply 350W AC
Available PoE power --
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-350WAC
Switching capacity 208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000
Safety certifications

● UL 60950-1

● CAN/CSA-C222.2 No. 60950-1

● EN 60950-1

● IEC 60950-1

● AS/NZS 60950.1

● IEEE 802.3

Electromagnetic emissions certifications

● 47 CFR Part 15

● CISPR22 Class A

● EN 300 386 V1.6.1

● EN 55022 Class A

● EN 55032 Class A

● CISPR 32 Class A

● EN61000-3-2

● EN61000-3-3

● ICES-003 Class A

● TCVN 7189 Class A

● V-3 Class A

● CISPR24

● EN 300 386

● EN55024

● TCVN 7317

Environmental Reduction of Hazardous Substances (ROHS) 5

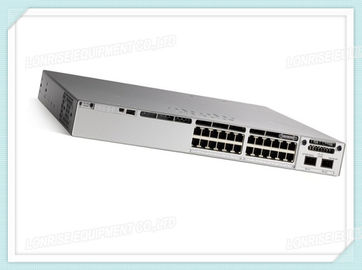

1). shows the front view of C9300-24T-A.



The module slot on the right of the front panl dosen't include the module. Network Modules (providing 1G/10G/40G ports) should be purchased seperately.

Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage 0



Blue Beacon-for easy of serviceability Optional wireless console access with Bluetooth
Best HA-NSF/SSO 24 x 1G ports





2). shows the rear view of C9300-24T-A.



Cisco C9300-24T-A Ethernet Netwrok Switch Catalyst 9300 24-port data only, Network Advantage 1



Local Storage USB 3.0 SSD pluggable
Stackwise-480-Industry’s highest stack bandwidth
Modular,Redundant Fans
Intellgent Power management-Cisco StackPower
Optional Power Supply
High- Efficiency Power Supply





The Accessories

 shows the recommended elements for the C9300-24T-A.



Product number Description
C9300-NM-4G 9300 Series 4x 1G Network Module
C9300-NM-4G= Catalyst 9300 4 x 1GE Network Module, spare
C9300-NM-8X 9300 Series 8x 10G Network Module
C9300-NM-8X= Catalyst 9300 8 x 10GE Network Module, spare
C9300-NM-2Q 9300 Series 2x 40G Network Module
C9300-NM-2Q= Catalyst 9300 2 x 40GE Network Module, spare
C9300-NM-4M 9300 Series 4x Multigigabit Network Module
C9300-NM-4M= Catalyst 9300 4 x MGig Network Module, spare

Compare to Similar Items

shows the comparison between C9300-24T-A and C9300-24P-A.



Product Code C9300-24T-A C9300-24P-A
Product Description Catalyst 9300 24-port data only, Network Advantage Catalyst 9300 24-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24 24 POE+
Default AC power supply 350W AC 715W AC
Available PoE power -- 445W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds 16.33 Pounds
