Product Details:
|
| Branch: | CISCO | Condition: | NEW IN BOX (NIB), Unused, Unopened, Brand New |
|---|---|---|---|
| Type: | Ethernet Switch | Max. Data Transfer Rate: | 1000Mbps/1Gbps |
| Number Of Network Ports: | 12 | Form Factor: | Rack Mountable |
| Network Management Type: | Fully Managed | Ethernet Technology: | Gigabit Ethernet (1000-Mbit/s) |
| High Light: | poe ethernet switch,fiber optic network switch |
||
Product Description:
Take-charge users enjoy the configuration feature of a Cisco 3750G switch that lets administrators use SmartPort macros requiring little expertise when implementing the pretested and verified switch port connections. Depending on the IP phone or computer, SmartPorts automatically execute the macros for easy applications and a reduction in time upon deployment. These inbuilt shortcuts provide consistent and reliable security and management organization. Users enjoy the Replace and Rollback feature that simplifies configuration management by replacing one file with another without switch reloading. Purchasers appreciate that the unit decreases energy usage and is mountable and stackable for greater flexibility and performance. Other automatic features work behind the scenes to take the drudgery out of network management and increase productivity.
Parameter:
| Brand | Cisco |
| Model | 3750G-12S-S SMI |
| MPN | WS-C3750G-12S-S |
| UPC | 0746320812489 |
| Key Features | |
| Form Factor | Rack-Mountable |
| Ports Qty | 12-Ports |
| Data Transfer Rate | 32000 Mbps |
| Data Link Protocol | Gigabit Ethernet (1000-Mbit/s) |
| Compatibility | PC |
| Features | |
| Other Features | Flow control, full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, bandwidth utilization %, status |
| Networking | |
| Networking Type | Switch |
| Connectivity Technology | Wired |
| Switching Protocol | Ethernet |
| Remote Management Protocol | HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Routing Protocol | EIGRP, RIP, RIP-1, RIP-2, RIPng, Static IP routing |
| Stackable | Stackable |
| MAC Address Table Size | 12K entries |
| Connectors | |
| Interfaces | 1 x management - console - RJ-45 female, 1 x network stack device x 2 |
| Power | |
| Power Consumption Operational | 100 Watt |
| Power Source | AC 120/230 V ( 50/60 Hz ) |
| Power Supplay | Power supply - internal |
| Memory | |
| Flash Memory | 16 MB flash |
| RAM Memory | 128 MB |
| Dimensions | |
| Width | 17.5 in. |
| Height | 1.73 in. |
| Depth | 12.8 in. |
| Weight | 10 lbs |
| Miscellaneous | |
| Enclosure Type | Rack-mountable - 1U |
| Humidity Range Operating (Range) | 10 - 85% |
| Max Altitude Operating_Display | 9.84 ft |
| Max Operating Temperature_Display | 113 ˚F |
| Min Operating Temperature_Display | 32 ˚F |
| Rack Mounting Kit | Optional |
1 Year manufacturer's warranty
Shipping Info:
We ship items around the world mainly via DHL, FedEx, EMS.
Contact information:
LONRISE EQUIPMENT CO.,LTD
Shanghai Main Office:
Tel: +8618616582084
Fax: +86-021-56473510
Email: laura@lonriseequipment.com
Skype: lonrisesales
Address: Rm501, Building 42th , No. 415, ShanQuan Road, 200443 ZhaBei District, Shanghai, China.

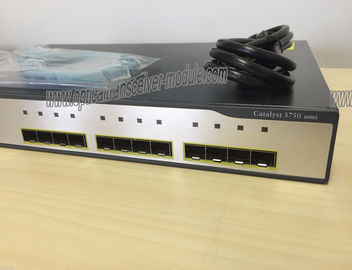

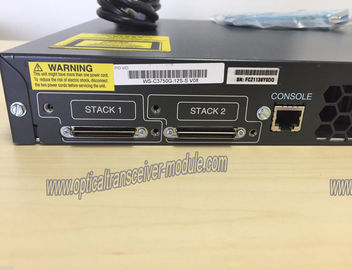

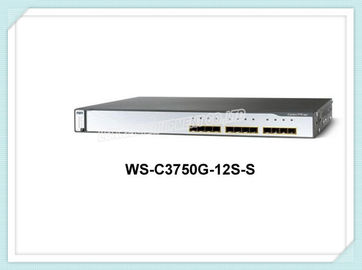

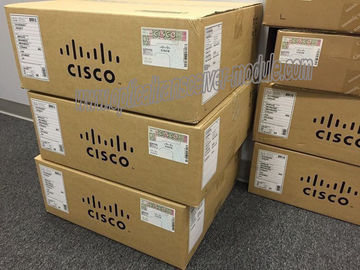

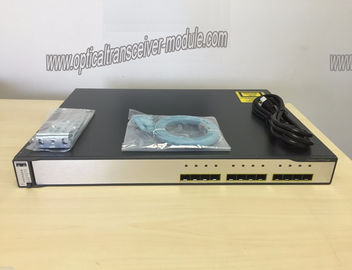

Pictures for reference:
