Product Details:
|
| Branch: | CISCO | Condition: | NEW IN BOX (NIB), Unused, Unopened, Brand New |
|---|---|---|---|
| Type: | Ethernet Switch | Max. Data Transfer Rate: | 1000Mbps/1Gbps |
| Number Of Network Ports: | 24 | Form Factor: | Rack Mountable |
| Network Management Type: | Fully Managed | Ethernet Technology: | Gigabit Ethernet |
| High Light: | optical ethernet switch,poe ethernet switch |
||
4 Expansion SlotS SFP Fiber Switch CISCO WS-C2960XR-24PS-I 1.8" Height
Product Description:
Catalyst 2960-XR 24 GigE, 4 x 1G SFP, IP Lite
10/100/1000 Ethernet Ports: 24
Uplink Interfaces: 4 SFP
Cisco IOS Software Image: IP Lite
All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.
LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.
Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.
| Part Number | 10/100/1000 Ethernet Interfaces | Uplink Interfaces | Cisco IOS Software Feature Set | Available PoE Power | Second FRU Power Supply Option | FlexStack-Plus Stacking |
| WS-C2960XR-48FPD-I | 48 | 2 SFP+ | IP Lite | 740W | 1025W | Optional |
| WS-C2960XR-48LPD-I | 48 | 2 SFP+ | IP Lite | 370W | 640W | Optional |
| WS-C2960XR-24PD-I | 24 | 2 SFP+ | IP Lite | 370W | 640W | Optional |
| WS-C2960XR-48TD-I | 48 | 2 SFP+ | IP Lite | - | 250W | Optional |
| WS-C2960XR-24TD-I | 24 | 2 SFP+ | IP Lite | - | 250W | Optional |
| WS-C2960XR-48FPS-I | 48 | 4 SFP | IP Lite | 740W | 1025W | Optional |
| WS-C2960XR-48LPS-I | 48 | 4 SFP | IP Lite | 370W | 640W | Optional |
| WS-C2960XR-24PS-I | 24 | 4 SFP | IP Lite | 370W | 640W | Optional |
| WS-C2960XR-48TS-I | 48 | 4 SFP | IP Lite | - | 250W | Optional |
| WS-C2960XR-24TS-I | 24 | 4 SFP | IP Lite | - | 250W |
Optional |
Parameter:
| Manufacturer | Cisco |
|---|---|
| Mfg Part NO. | WS-C2960XR-24TS-I |
| Modular | No |
|---|---|
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network / 4 x Gigabit Ethernet Expansion Slot |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960XR-24TS-I |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960XR-24TS-I |
| Product Name | Catalyst 2960XR-24TS-I Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960-XR |
| Brand Name | Cisco |
| Expansion Slot Type | SFP |
| Number of Total Expansion Slots | 4 |
| Number of SFP Slots | 4 |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Layer Supported | 3 |
| Weight (Approximate) | 13 lb |
| Form Factor | Rack-mountable |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 16" |
| Power Source | Power Supply |
| Redundant Power Supply | Yes |
| Manageable | Yes |
1 Year manufacturer's warranty
Shipping Info:
We ship items around the world mainly via DHL, FedEx, EMS.
Contact information:
LONRISE EQUIPMENT CO.,LTD
Shanghai Main Office:
Tel: +8618616582084
Fax: +86-021-56473510
Email: laura@lonriseequipment.com
Skype: lonrisesales
Address: Rm501, Building 42th , No. 415, ShanQuan Road, 200443 ZhaBei District, Shanghai, China.

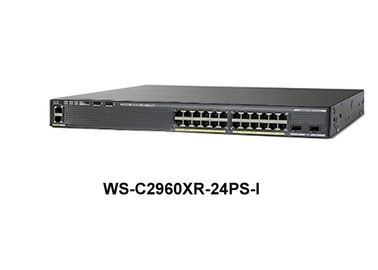

Pictures for reference:
