Product Details:
|
| Branch: | Cisco | Type: | Router Modules |
|---|---|---|---|
| PN: | PVDM4-64 | Low Complexity: | 64 |
| Medium Complexity: | 48 | Slot: | On-board Motherboard Or T1/E1 Module Slot |
| High Light: | cisco router switch module,cisco network module |
||

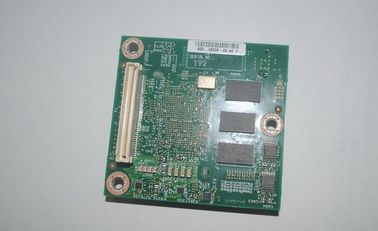

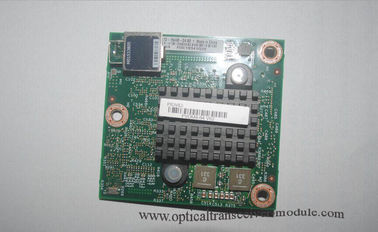

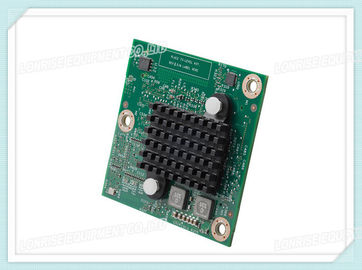

Cisco Router Module PVDM4-64 64-channel high-density voice and video DSP module
Cisco PVDM4-64 Specification:
The Cisco High-Density Packet Voice Digital Signal Processor Module (PVDM3) enables Cisco 2900 and 3900 Series Integrated Services Routers Generation 2 to provide rich-media capabilities such as high-density voice video connectivity, conferencing, transcoding, transrating, and secure voice in Cisco Unified Communications Solutions.
The PVDM3 provides higher density and more processing power than the PVDM2, making the addition of rich-media applications possible. Enhanced DSP architecture accommodates a packet-processing engine optimized for rich-media voice and video applications, while concurrently supporting the time-division multiplexing IP (TDM-IP) voice framework used by the PVDM2.
Part code:PVDM4-64
PVDM4 Modules Specifications |
|
| Feature | Motherboard PVDMs (PVDM4s) |
| Components | |
| DSP | Multicore DSP technology |
| Interface | Integrated Services Card (ISC) slot on motherboard or T1/E1 NIM |
| Features | |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Voltage | 3.3V |
| Current | 1.47A |
| Power | 4.85W |
| Weight | 0.08 lb (36 g) |
| Dimensions (H x W x D) | 0.67 x 2.50 x 2.62 in. (1.7 x 5.1 x 6.7 cm) |
| Regulatory and Compliance | |
| Safety |
Complies with: ● IEC 60950 (worldwide) ● AS/NZS 60950-1 (Australia and New Zealand) ● CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada) ● GB4943-95 (People's Republic of China) ● EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA) ● NOM-019-SCFI-1998 (Mexico) ● UL 60950-1, 1st and 2nd Ed. (United States) |
| Homologation | Platform dependent |
| Mean time between failures (MTBF) | System dependent |
| EMC | |
| Emissions |
● CISPR22, Class B ● EN55022, Class B, CFR47, Part 15, Subpart B, Class B |
| Harmonics | EN61000-3-2 |
| Flicker | EN61000-3-3 |
| Immunity |
● CISPR24 ● EN 55024 ● EN50082-1 |
| Electrostatic discharge (ESD) | EN 61000-4-2 |
| RF fields | EN 61000-4-3 |
| EFT | EN 61000-4-4 |
| Surge | EN 61000-4-5 |
| Conducted RF | EN 61000-4-6 |
| Power-frequency magnetic fields | EN 6100-4-8 |
| Voltage dips, sags, and interruptions | EN 61000-4-11 |
shows the comparison of PVDM4-64, PVDM4-32 and PVDM4-128.
| Product Code | PVDM4-64 | PVDM4-32 | PVDM4-128 |
| Slot | On-board motherboard or T1/E1 module slot | On-board motherboard or T1/E1 module slot | On-board motherboard or T1/E1 module slot |
| Description | 64-channel high-density voice DSP module | 32-channel high-density voice DSP module | 128-channel high-density voice DSP module |
| Low Complexity | 64 | 32 | 128 |
| Medium Complexity | 48 | 24 | 96 |
| High Complexity | 32 | 16 | 64 |
Order Information
| PN | Description | GPL |
| PVDM2-16 | 16-Channel Packet Voice/Fax DSP Module | $800 |
| PVDM2-48 | 48-Channel Packet Voice/Fax DSP Module | $2400 |
| PVDM3-32 | 32-channel high-density voice DSP module | $1600 |
| PVDM3-128 | 128-channel high-density voice DSP module | $6400 |
| PVDM3-256 | 256-channel high-density voice DSP module | $9900 |
| PVDM2-ADPTR | PVDM2 Adapter for PVDM Slot on Cisco 2900, 3900 Series ISR | $75 |
| ISM-VPN-19 | 3DES/AES/SUITE-B VPN Encryption module | $2750 |
| ISM-VPN-29 | 3DES/AES/SUITE-B VPN Encryption module | $3750 |
| ISM-SRE-300-K9 | Internal Services Module (ISM) with Services Ready Engine | $1000 |
