Product Details:
|
| Model: | ISR4221/K9 | Name: | Cisco ISR 4221 (2GE,2NIM,8G FLASH,4G DRAM,IPB) |
|---|---|---|---|
| Key Words: | Internet Router | Detail: | 35Mbps-75Mbps System Throughput, 2 WAN/LAN Ports, 1 SFP Port, Multi-Core CPU,2 NIM |
| Aggregate Throughput: | 35 Mbps To 75 Mbps | Total Onboard: | WAN Or LAN 10/100/1000 Ports 2 |
| RJ-45-based Ports: | 2 | SFP-based Ports: | 1 |
| High Light: | ISR 4221 Cisco Router Modules,4G DRAM Cisco Router Modules,Cisco Router Modules Wifi Range Extenders |
||

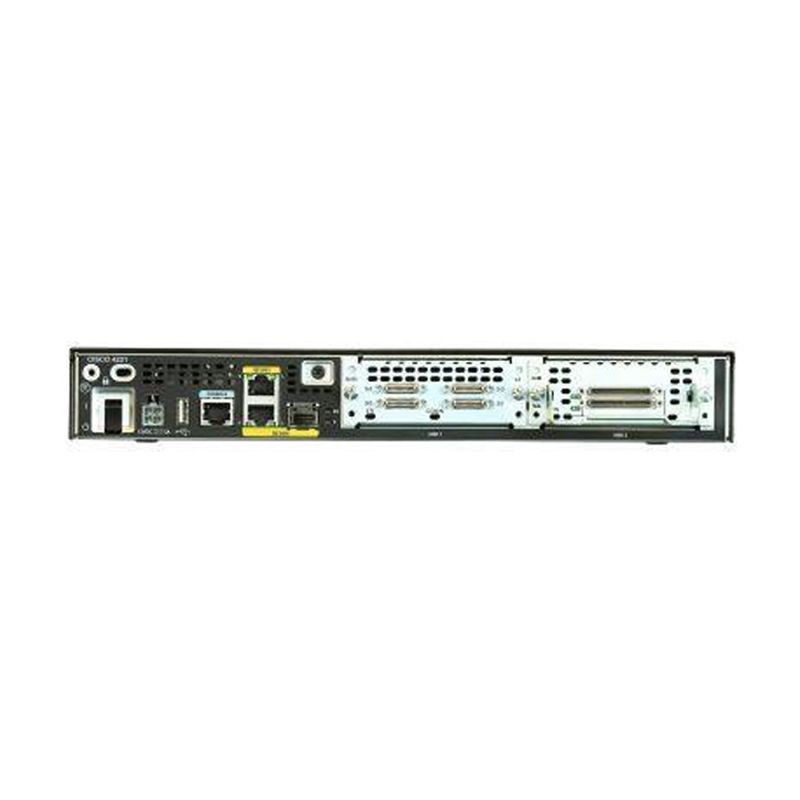

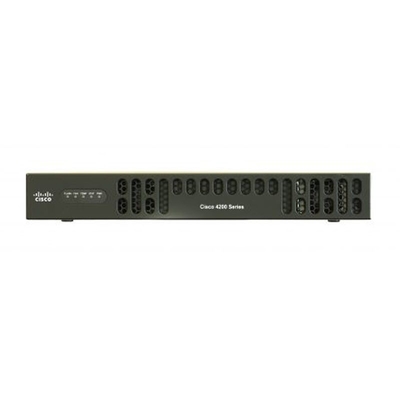

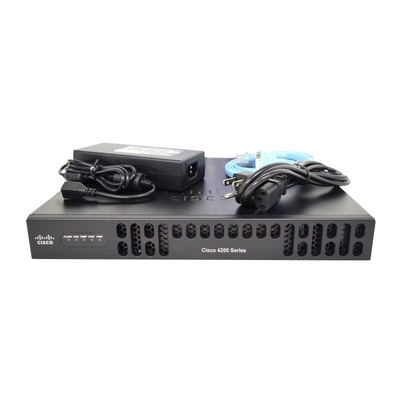

Cisco ISR 4221 (2GE,2NIM,8G FLASH,4G DRAM,IPB) best router wifi range extenders
Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.
Cisco ISR4221/K9 Specification |
|
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | No |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 8 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
| Power-supply options | External: AC Only |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 24 |
| Maximum power with AC power supply (watts) | 90 |
| Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
| Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
| Technical Specifications | ISR4461/K9 | ISR4451-X/K9 | ISR4431/K9 | ISR4351/K9 | ISR4331/K9 | ISR4321/K9 | ISR4221/K9 |
| Aggregate Throughput | 1.5Gbps |
1 Gbps to 2 Gbps |
500 Mbps to 1 Gbps |
200 Mbps to 400 Mbps |
100 Mbps to 300 Mbps |
50 Mbps to 100 Mbps |
35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
| RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
| SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
| Enhanced service-module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
| Doublewide service-module slots | 2 | 1 (assumes no singlewide SM-X modules installed) | 0 | 1 (assumes no singlewide SM-X modules installed) | 0 | 0 | 0 |
| NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
