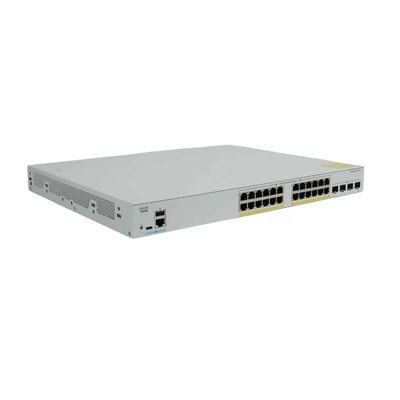

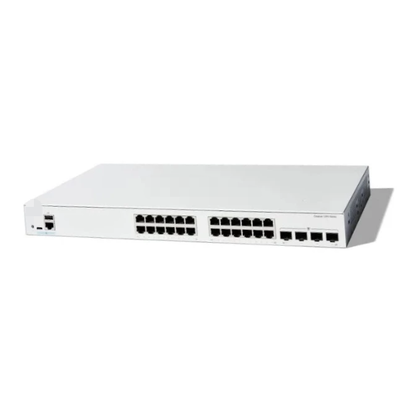

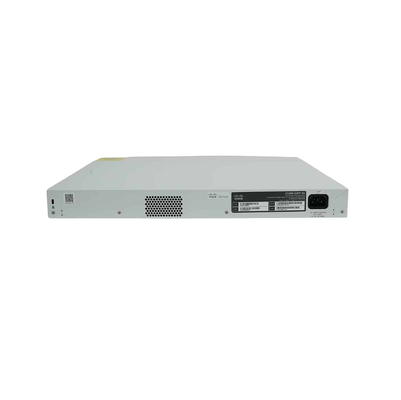

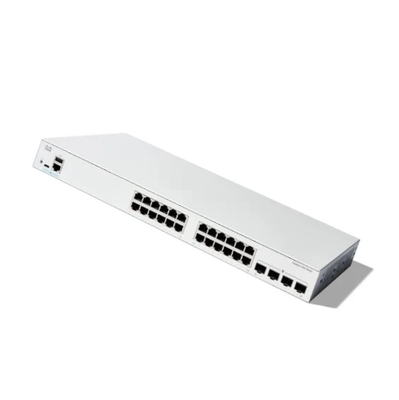

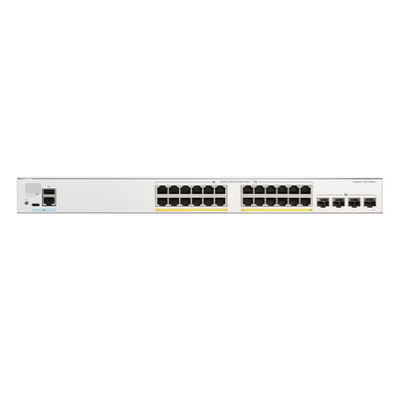

Cisco C1200-24FP-4X Catalyst 1200 24-Port PoE+ Switch with 4x 10G SFP+ Uplinks

Quick Specs

Cisco's official model comparison confirms the 24 * 1G PoE ports and 4 * 10G SFP+ uplinks.

Product Specifications

The official Cisco datasheet specifies the model's 1 GB DDR4 memory, 512 MB flash, dual-core 1.4 GHz ARM CPU, 1.5 MB packet buffer, and Layer 2 features such as LACP, STP/RSTP/MSTP and VLAN support.

Product Overview

The Cisco C1200-24FP-4X is a 24-port Gigabit PoE+ managed switch designed for business networks that require both reliable Ethernet connectivity and higher-speed uplinks. It combines 24 * 10/100/1000BASE-T PoE+ ports with 4 * 10G SFP+ uplink ports, providing a practical access-layer solution for connecting IP phones, wireless access points, surveillance cameras, computers and other network devices.

With a 375W PoE budget, the C1200-24FP-4X can supply power to multiple compatible PoE devices through Ethernet cabling. Cisco specifies support for IEEE 802.3af and 802.3at PoE+, with up to 30W available per port subject to the overall switch power budget.

The four 10G SFP+ uplinks provide higher-bandwidth connections toward aggregation switches, servers or other network infrastructure. The switch has a 128 Gbps switching capacity and 95.23 Mpps forwarding rate, supporting wire-speed, nonblocking switching across the platform.

For network segmentation and traffic management, the C1200-24FP-4X supports VLANs, Voice VLAN, Guest VLAN, LACP, spanning-tree protocols, IGMP snooping and QoS functions. It also supports management and security capabilities suitable for small and midsize business networks.

Key Benefits

1. 24-Port Gigabit PoE+ Access

The 24 Gigabit Ethernet ports support PoE+ for compatible endpoints, reducing the need for separate power adapters and power cabling.

2. Four 10G SFP+ Uplinks

Four 10Gbps SFP+ interfaces provide high-speed uplink connectivity for aggregation, server or backbone applications.

3. 375W PoE Budget

The 375W total PoE budget provides additional capacity for deploying multiple access points, IP phones, cameras and other powered devices.

4. Layer 2 and Layer 3 Networking

VLAN, STP/RSTP/MSTP, LACP, IGMP snooping and static IPv4/IPv6 routing functions help support common business-network architectures.

5. Flexible Network Management

The Catalyst 1200 platform supports web-based management, CLI and standard network-management protocols, allowing administrators to configure and monitor the switch according to their network environment.

C1200-24FP-4X vs C1200-24P-4X

Both models provide 24 Gigabit PoE+ ports and four 10G SFP+ uplinks; the primary hardware distinction relevant to deployment is the available PoE budget. Cisco lists 375W for the C1200-24FP-4X versus 195W for the C1200-24P-4X.

FAQ

What is the Cisco C1200-24FP-4X?

The C1200-24FP-4X is a Cisco Catalyst 1200 Series managed switch featuring 24 Gigabit PoE+ ports and four 10G SFP+ uplinks.

How many PoE ports does the C1200-24FP-4X have?

It has 24 PoE+ Gigabit Ethernet ports. Cisco specifies support for IEEE 802.3af and 802.3at PoE+.

What is the PoE budget of the C1200-24FP-4X?

The total PoE power budget is 375W. Individual ports can provide up to 30W, subject to the total available PoE budget.

Does the C1200-24FP-4X support 10G uplinks?

Yes. It provides four 10G SFP+ uplink interfaces, making it suitable for connecting the access switch to higher-speed aggregation or backbone equipment.

Is the C1200-24FP-4X suitable for IP cameras and wireless access points?

Yes. Its 24 PoE+ ports can provide both network connectivity and power to compatible PoE devices such as IP cameras, wireless access points and VoIP phones, subject to the available 375W PoE budget.

Can the C1200-24FP-4X be used for small and midsize business networks?

Yes. Its combination of Gigabit access ports, 10G uplinks, VLAN, QoS, security, management and routing features makes it suitable for a range of business access-network deployments.

What should I confirm before purchasing?

Confirm the required PoE budget, uplink speed, SFP/SFP+ compatibility, power requirements, software/feature requirements and deployment environment. This helps ensure the switch matches the existing network architecture.

After-Sales & Technical Support FAQ

Can I get technical assistance before ordering?

Yes. For a network hardware purchase, it is useful to confirm the required port configuration, PoE requirements, uplink modules and compatibility before placing an order.

What should I do if the switch has a problem after delivery?

First check the power supply, port status, cabling, SFP/SFP+ modules and configuration. If the issue remains, provide the model number, serial/asset information, fault description and relevant diagnostic information to the supplier or authorized support channel.

Can you help verify compatibility?

Compatibility can be checked based on the switch model, SFP/SFP+ module, fiber or copper medium, connected equipment and intended network topology. Providing the complete equipment list before purchase can reduce deployment issues.

What information should I provide when requesting after-sales support?

For faster troubleshooting, provide the C1200-24FP-4X model, hardware/software information, purchase details, symptoms, connected devices and relevant configuration or log information.
