Quick Specs
| Item |
Specification |
| Brand |
Cisco |
| Model |
C1200-8T-E-2G |
| Product Series |
Cisco Catalyst 1200 Series |
| Device Type |
Managed Gigabit Ethernet Switch |
| Downlink Ports |
8 × 10/100/1000BASE-T RJ45 |
| Uplink Ports |
2 × Gigabit SFP Ports |
| Switching Capacity |
Up to 20 Gbps |
| Forwarding Rate |
Up to 14.88 Mpps |
| Management |
Web GUI, CLI, SNMP |
| Layer |
Layer 2 Managed Switch |
| Power Supply |
Internal AC Power |
| Deployment |
SMB, Enterprise Edge, Branch Network |
Product Parameters
| Category |
Details |
| Product Name |
Cisco Catalyst 1200 Series Switch |
| Model Number |
C1200-8T-E-2G |
| Network Ports |
8 x Gigabit Ethernet RJ45 Ports |
| SFP Ports |
2 x Gigabit SFP Uplink Ports |
| Ethernet Speed |
10/100/1000 Mbps |
| Switching Capacity |
20 Gbps |
| Forwarding Performance |
14.88 Million packets per second |
| MAC Address Table |
Supports large-scale MAC learning |
| VLAN Support |
802.1Q VLAN, Voice VLAN, Guest VLAN |
| Spanning Tree Protocol |
STP, RSTP, MSTP |
| Link Aggregation |
IEEE 802.3ad LACP |
| Quality of Service |
802.1p QoS, Traffic Prioritization |
| Security Features |
ACL, Port Security, DHCP Snooping |
| Management Interface |
Web-based Management, CLI, SNMP |
| Network Protocols |
IPv4/IPv6 Support |
| Installation Type |
Desktop or Rack Mount Deployment |
| Operating Temperature |
Suitable for standard enterprise environments |
| Applications |
Small Business, Branch Office, Campus Edge |
Product Overview

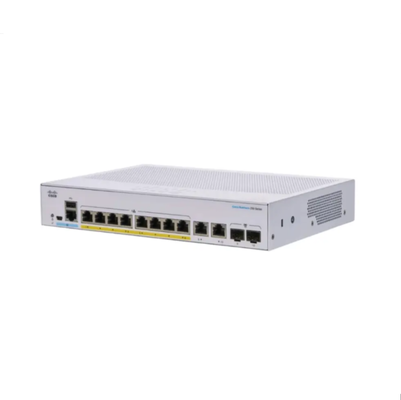

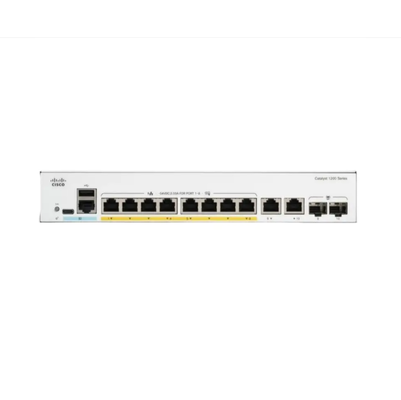

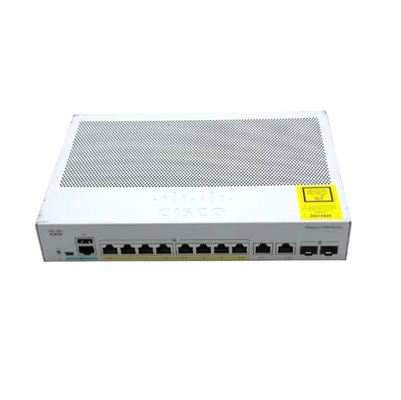

Cisco C1200-8T-E-2G Catalyst 1200 Series 8-Port Gigabit Ethernet Switch is a reliable and cost-effective managed network switch designed for small and medium-sized businesses, branch offices, and enterprise edge deployments.
Featuring 8 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP uplink ports, the Cisco C1200-8T-E-2G provides flexible connectivity options for computers, IP phones, wireless access points, surveillance devices, and other network equipment. The dual SFP uplinks allow high-speed connections to backbone switches or fiber networks, improving network scalability and reliability.
Built with Cisco enterprise-grade switching technology, this Catalyst 1200 Series switch supports essential Layer 2 features including VLAN, QoS, STP/RSTP/MSTP, link aggregation, and advanced security controls. It delivers stable network performance while simplifying deployment and management through an intuitive web interface and traditional CLI access.
The Cisco C1200-8T-E-2G is an excellent choice for organizations looking for an affordable managed Gigabit Ethernet switch with Cisco reliability, easy operation, and future expansion capability.
Key Features & Benefits
1. Compact Gigabit Connectivity
- 8 × Gigabit Ethernet ports provide fast wired connections.
- Ideal for desktops, printers, IP phones, cameras, and wireless access points.
- 2 × Gigabit SFP ports enable fiber uplink expansion.
2. Enterprise-Level Network Management
- Supports VLAN segmentation for improved network security.
- QoS prioritizes voice, video, and critical applications.
- SNMP monitoring helps administrators manage network performance.
3. Reliable Security Protection
- Supports ACL filtering.
- Port security prevents unauthorized access.
- DHCP Snooping enhances network protection.
4. Flexible Deployment
- Suitable for:
- Small and medium businesses
- Branch offices
- Retail networks
- Education environments
- Enterprise edge networks
Application Scenarios
Small Business Network
Cisco C1200-8T-E-2G provides reliable Gigabit connectivity for offices requiring secure and manageable networking without complex deployment.
Branch Office Connectivity
The two SFP uplink ports allow connection to headquarters networks through fiber infrastructure.
IP Phone & Wireless Network
QoS capabilities ensure smooth operation of VoIP phones and wireless access points.
Surveillance Network
Gigabit Ethernet ports provide stable bandwidth for IP cameras and monitoring systems.
Product Comparison
Cisco C1200-8T-E-2G vs Cisco CBS110-8T-D
| Feature |
C1200-8T-E-2G |
CBS110-8T-D |
| Series |
Catalyst 1200 |
Business 110 |
| Management |
Managed Switch |
Unmanaged/Basic |
| SFP Uplink |
2 × SFP |
Limited |
| VLAN Support |
Yes |
Limited |
| QoS |
Advanced QoS |
Basic QoS |
| Enterprise Deployment |
Excellent |
Entry Level |
Conclusion:
The Cisco C1200-8T-E-2G is better suited for businesses requiring network management, security features, and future scalability.
FAQ
Q1: What is Cisco C1200-8T-E-2G used for?
A: Cisco C1200-8T-E-2G is a managed Gigabit Ethernet switch designed for small businesses, branch offices, and enterprise edge networks. It connects computers, IP phones, wireless access points, and other Ethernet devices.
Q2: How many ports does Cisco C1200-8T-E-2G have?
A: This switch includes 8 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP uplink ports, providing both copper and fiber connectivity options.
Q3: Is Cisco C1200-8T-E-2G a managed switch?
A: Yes. The Cisco Catalyst 1200 Series supports Layer 2 managed switching features including VLAN, QoS, SNMP, ACL, and link aggregation.
Q4: What is the difference between Cisco C1200 and Cisco Catalyst 1000 Series?
A: Cisco Catalyst 1200 Series offers a modern management experience, improved SMB-oriented features, and flexible deployment options, while Catalyst 1000 Series focuses on traditional enterprise access switching.
Q5: Does Cisco C1200-8T-E-2G support fiber connections?
A: Yes. The two SFP uplink ports support Gigabit fiber transceiver modules, allowing connection to fiber backbone networks.
Q6: Do you provide warranty and after-sales support?
A: Yes. We provide professional technical support, product testing services, warranty options, and assistance with compatibility verification before shipment.
