JL262A Aruba 2930F 48G PoE+ 4SFP Switch

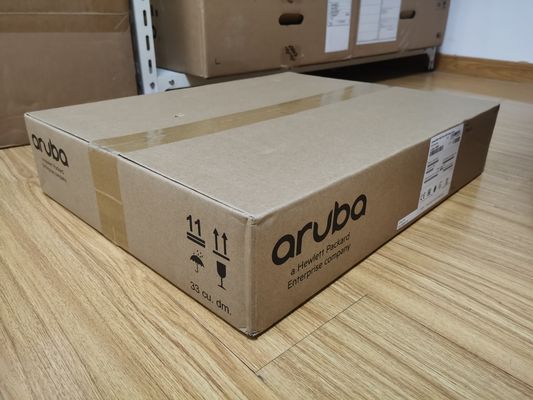

Large Image : JL262A Aruba 2930F 48G PoE+ 4SFP Switch

Product Details:

Place of Origin:	China
Brand Name:	Aruba
Certification:	CE
Model Number:	JL262A
Document:	LONRISE EQUIPMENT Company ...le.pdf

Contact Now

JL262A Aruba 2930F 48G PoE+ 4SFP Switch

Description

Model:	JL262A	Type:	Aruba 2930F 48G PoE+ 4SFP Switch
Throughput:	Up To 77.4 Mp/s	Switching Capacity:	104 Gb/s
1000 Mb Latency:	< 3.8 μs (64-byte Packets)	PoE Power:	370 W PoE+
Dimensions:	4.39 X 44.25 X 30.42 Cm	Condition:	Brand New With 1 Year's Warranty

JL262A Overview

Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL262A has 48 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

JL262A Specification

Model

JL262A

Brand

Aruba

Type

Aruba 2930F 48G PoE+ 4SFP Switch

I/O Ports and Slots

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only

Additional Ports and Slots

1 dual-personality (RJ-45 or USB micro-B) serial console port

Memory and Processor

Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM, 12.38 MB Packet buffer size (4.5MB Ingress/7.875MB Egress), 4 GB eMMC

Management

Aruba AirWave Network Management; IMC – Intelligent Management Center, Command-line interface, Web browser, Configuration menu, SNMP manager, Telnet, RMON 1, FTP, Out-of-band management (serial RS-232C or micro USB)

1000 Mb Latency

< 3.8 μs (64-byte packets)

Throughput

Up to 77.4 Mp/s

Switching Capacity

104 Gb/s

Routing Table Size

10,000 entries (IPv4), 5,000 entries (IPv6)

MAC Address Table Size

32,768 entries

Dimensions

4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in), 1U height

80plus.org Certification

Silver

Maximum Heat Dissipation

1652.13 kJ/hr (1566 BTU/hr)

Voltage

100 - 127 / 200 - 240 V AC, rated

Current

5.1/2.5 A

Maximum Power Rating

459 W

Idle Power

48.6 W

Frequency

50/60 Hz

PoE Power

370 W PoE+

Operating Temperature

0°C to 45°C (32°F to 113°F) up to 5,000 Feet / 0°C to 40°C (32°F to 104°F) up to 10,000 Feet

Operating Relative Humidity

15% to 95% @ 40°C (104°F) noncondensing

Nonoperating/Storage Temperature

-40°C to 70°C (-40°F to 158°F) up to 15,000 Feet

Nonoperating/Storage Relative Humidity

15% to 95% @ 65°C (149°F) noncondensing

Acoustic

Power: 55.7 dB, Pressure: 41.7 dB

Airflow Direction

Side-to-side

Safety Certifications

UL 60950-1, 2nd Edition, EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC 60950-1:2005 +A1:2009 +A2:2013, CSA 22.2 No. 60950-1-07 2nd, EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Emissions

EN 55022:2010/CISPR 22 Class A, FCC CFR 47 Part 15 Class A, VCCI Class A, ICES-003 Class A, CNS 13438

Immunity

Generic: EN 55024:2010/CISPR 24, ESD IEC 61000-4-2, Radiated IEC 61000-4-3, EFT/Burst IEC 61000-4-4, Surge IEC 61000-4-5, Conducted IEC 61000-4-6, Power frequency magnetic field IEC 61000-4-8, Voltage dips and interruptions IEC 61000-4-11, Harmonics IEC/EN 61000-3-2, Flicker IEC/EN 61000-3-3
