Product Details:
|
| Model: | WS-C3850-48XS-S | Ports: | 48 X SFP+ Ports |
|---|---|---|---|
| Switching Capacity: | 1280 Gbps | Maximum Stacking Number: | 9 |
| FNF Entries: | 96,000 Flows | CPU: | Multicore CPU |
| RAM: | 8 GB | Flash Memory: | 8 GB |
| Lead Time: | 2-3 Days | ||
| High Light: | Cisco Catalyst 3850 Fiber Switch,IP Base Catalyst 3850 Switch,WS-C3850-48XS-S |
||

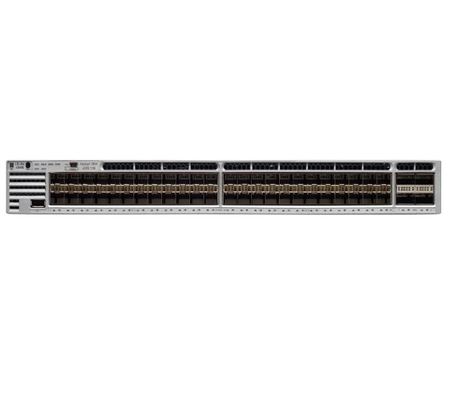

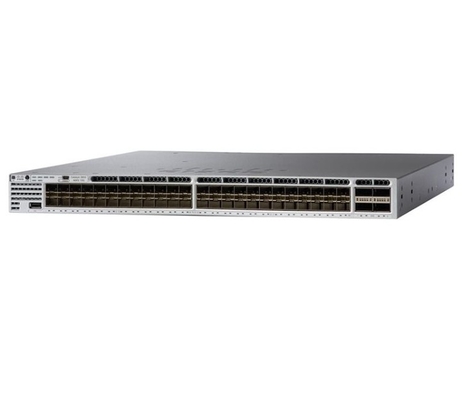

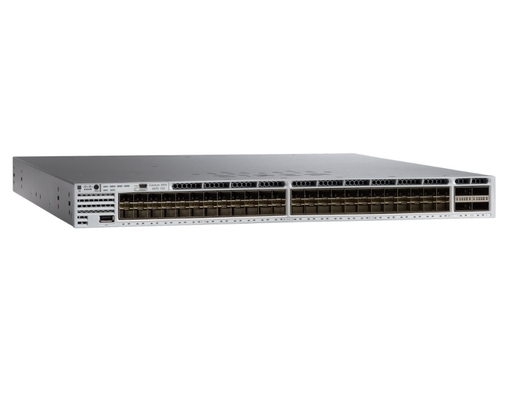

WS-C3850-48XS-S switch provides 48 ports 10Gbps SFP+ connection with upgradeable IP base image and build in wireless controller provide fully convergence between wired and wireless on a single platform.
| Models | WS-C3850-12XS-S | WS-C3850-48XS-S |
| Feature Set | IP Base | IP Base |
| Ports | 12 ports of 10G SFP+ Ethernet fiber connection with Flexible Netflow feature | 48 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
| Network SFP uplink module selection | C3850-NM-4-10G | None |
WS-C3850-48XS-S Specification |
|
| model info: | WS-C3850-48XS-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 48 x SFP+ ports |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 1280 Gbps |
| Maximum stacking number | 9 |
| FNF entries | 96,000 flows |
| Maximum VLANs IDs | 1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | Up to 40 Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Power supply | PWR-C3-750WAC-R |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Miscellaneous | |
| Dimension | 4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch) |
| Weight | 7.45 kg |
| Rack Mounting Kit | optional |
| MTBF in hours | 286,900 |
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.3 10BASE-T |
| System software / license | |
| System software | IOS IP Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Features |
●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication ● Private VLAN ●Router and VLAN ACLs ● complete identity and security ● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae ● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs ● Bridge protocol data unit (BPDU) Guard ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
| Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
