Product Details:
|
| Part Number: | C1111-8P | Key Words: | Cisco Router Modules |
|---|---|---|---|
| Item: | Router Wifi Wireless | Discription: | Industrial Lte Router |
| Warranty: | 1 Year | Lead Time: | 1-2 Working Days |
| Brand: | Cisco | Payment: | T/T |
| High Light: | C1111 8P Cisco Router Modules,Industrial 4g Cisco Router Modules,1100 Series Integrated Services Routers |
||

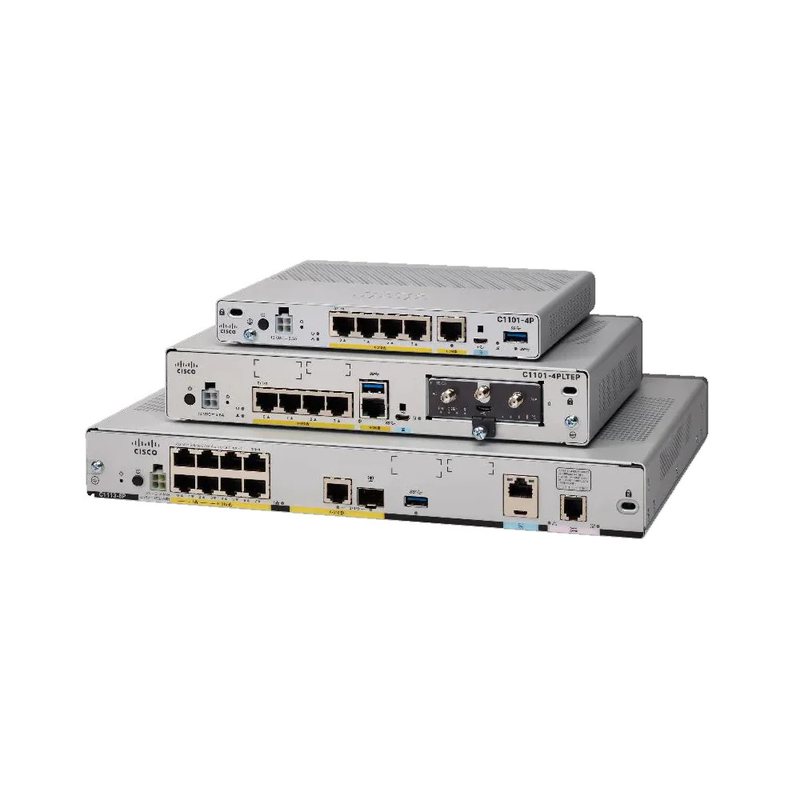

C1111 8P Cisco Router Modules industrial 4g router 1100 Series Integrated Services Routers
(Cisco Router Modules router wifi wireless industrial lte router)
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8P is the ISR 1100 8 Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.
Table 1 shows the quick spec.
| Model | C1111-8P |
| GE | 1 |
| GE/SFP combo | 1 |
| ADSL2/VDSL2+ | N/A |
| LTE Advanced (CAT6) | N/A |
| 802.11ac | N/A |
| GE | 8 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Dimensions (H x W x D) |
1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
C1111-8P Specification |
|
| Description | ISR 1100 8 Ports Dual GE WAN Ethernet Router |
| Physical Properties | |
| Dimensions (H x W x D) |
Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
| Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
| AC Input Power | |
| Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input current |
PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
| Ports | |
| Micro USB Port | One RJ-45: Separate console port |
| USB port |
USB 3.0 Type A host port USB devices supported: USB flash memory |
| Console port | One USB 5-pin micro Type B: Console management connectivity |
| 10/100/1000 Gigabit Ethernet |
Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2x2 .11ac Wave 2 |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |
| Inline PoE |
4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+ |
| Acoustic for Cisco 1100 Series ISRs | Not Applicable - Fanless design |
| Approvals and compliance |
Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
| Environmental | |
| Operating humidity | 5 to 85% relative humidity |
| Operating temperature |
32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
| Altitude in China | 0-6560 ft (0-2000 m) |
| Altitude in all other countries | 0-10,000 ft (0-3050 m) |
