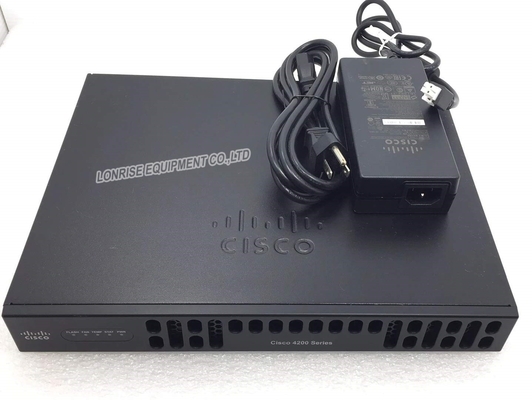

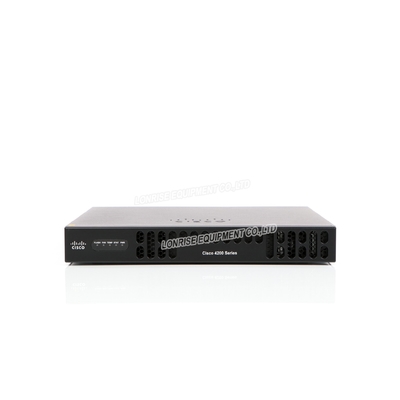

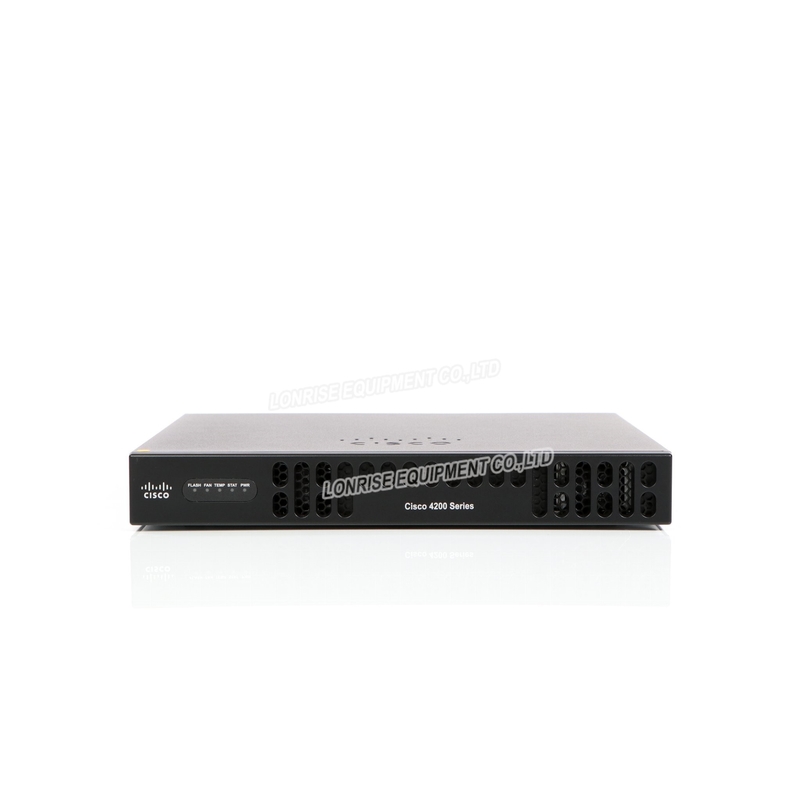

New Cisco ISR4221/K9 Integrated Services Router

New Cisco ISR4221/K9 Integrated Services Router
New Cisco ISR4221/K9 Integrated Services Router New Cisco ISR4221/K9 Integrated Services Router New Cisco ISR4221/K9 Integrated Services Router

Large Image :  New Cisco ISR4221/K9 Integrated Services Router

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: ISR4221/K9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: In original carton package
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 units / months

New Cisco ISR4221/K9 Integrated Services Router

Description
Flash Memory: 8 GB Rack Height: 1 RU
Weight With AC PS (no Modules): 7.1 Lb (3.22 Kg) RJ-45-based Ports: 2
SFP-based Ports: 1

Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.

Quick Specs



Product Code Cisco ISR4221/K9
Aggregate Throughput 35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
NIM (Network Interface Modules) slots 2
Onboard ISC slot No

Default memory double-data-rate 3 (DDR3) error-correction-code

(ECC) DRAM (Combined control/services/data planes)

4 GB
Flash Memory 8 GB
Power-supply options External AC only
Rack height 1 RU
Dimensions (H x W x D) 1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)
Weight with AC PS (no modules) 7.1 lb (3.22 kg)



Cisco ISR4221/K9 Specification

Aggregate Throughput 35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) No
Onboard ISC slot No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 4 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 8 GB
Maximum flash memory 8 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 0
Serial console port - RJ45 (up to 115.2 kbps) 1 (combo CON/AUX port)

Serial auxiliary port - RJ45

(up to 115.2 kbps)

1 (combo CON/AUX port)
Power-supply options External: AC Only
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 1.5 to 0.6A
AC input surge current 90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts) 24
Maximum power with AC power supply (watts) 90
Maximum power with PoE power supply (platform only) (watts) NA (no PoE support)
Maximum endpoint PoE power available from PoE power supply (watts) NA (no PoE support)


New Cisco ISR4221/K9 Integrated Services Router 0New Cisco ISR4221/K9 Integrated Services Router 1New Cisco ISR4221/K9 Integrated Services Router 2New Cisco ISR4221/K9 Integrated Services Router 3New Cisco ISR4221/K9 Integrated Services Router 4New Cisco ISR4221/K9 Integrated Services Router 5
