| Place Of Origin: | USA | Model: | EX2300-C-12P |
|---|---|---|---|
| Key Word: | Gigabit Network Switch | Product: | Ethernet Cable Switch |
| Discription: | Fiber Optic Network Switch | Warranty: | 1 Year |
| Condition: | Original New | MOQ: | 1pcs |
| High Light: | Compact Fanless Cisco Ethernet Network Switch,12 Port Poe Cisco Ethernet Switch,EX2300 Poe Ethernet Switch |
||

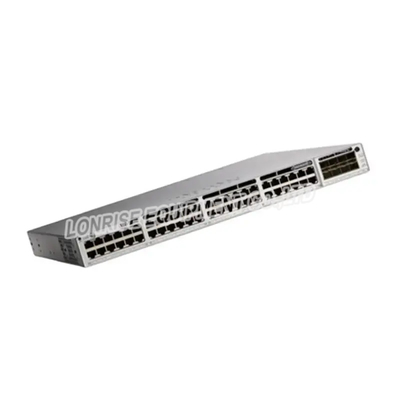

EX2300 C 12P Cisco Ethernet Switch Fanless Switch 12-Port PoE+ 2 X 1/10G SFP/SFP+
(gigabit network switch ethernet cable switch fiber optic network switch)
EX4300 1 Gigabit Ethernet (1GbE) switches are compact, fixed-configuration platforms that can be deployed as standalone systems or as part of a Virtual Chassis, or Junos Fusion switching architecture, satisfying a variety of high-performance campus and data center access needs.EX4300-32F is a Juniper EX4300 switch with 32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS .
| Product Code | EX2300-C-12P |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Power Device | Internal power supply |
| Power Provided | 170 Watt |
EX2300-C-12P Specification |
|
| General | |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 124 W |
| Performance | Switching capacity: 64 Gbps | Throughput: 47 Mpps |
| Capacity | LAG groups: 128 | Maximum member ports per LAG: 8 | Multiple Spanning Tree Protocol instances: 64 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv4 hosts: 4096 | IPv4 routes (Multicast): 2048 | Maximum of neighboring networks: 750 | IPv6 routes (Unicast): 128 | IPv6 hosts: 2048 | IPv6 routes (Multicast): 1024 | QoS hardware queues per port: 8 | IGMP snooping entries: 1000 | Virtual interfaces (VLANs): 2048 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | RIP-1, RIP-2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR |
| Processor | 1 x ARM: 1.25 GHz |
| RAM | 2 GB |
| Flash Memory | 2 GB |
| Expansion / Connectivity | |
| Interfaces | 12 x 1000Base-T RJ-45 PoE+ | 2 x 10Gbit LAN SFP+ | 1 x serial management | 1 x 100Base-TX RJ-45 management |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 170 Watt |
| Power Consumption Operational | 24 Watt |
| Miscellaneous | |
| Compliant Standards | TUV GS, CISPR 22 Class A, EN55024, CB, ICES-003 Class A, UL 60950-1 Second Edition, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386 |
| Dimensions | |
| Width | 11 in |
| Depth | 9.4 in |
| Height | 1.7 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
