Product Details:
|
| Name: | C9200L-48PXG-4X-A | Model: | C9200L-48PXG-4X-A |
|---|---|---|---|
| Gigabit Ethernet Ports: | 48 | Availability: | In Stock |
| Condition: | New | Warranty: | 1 Years |
| DRAM: | 2 GB | Switching Bandwidth: | 291.66 Mpps |
| Packange Weight:: | 10kg | Certification:: | FCC, Ce, RoHS, Other |
| High Light: | PoE Cisco Network Switches,48 Ports Cisco Network Switches,Ethernet Cisco 9200 Switches |
||

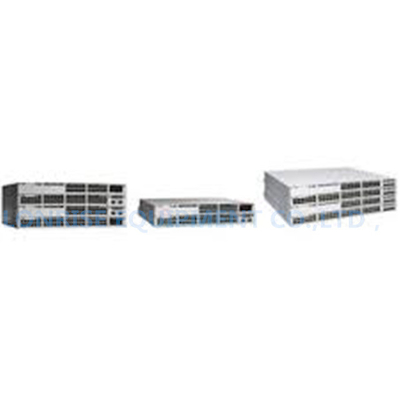

C9200L-48PXG-4X-E is the C9200L 48-p (12xmGig, 36x1G), 4x10G PoE+, Network Essentials. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
C9200L-48PXG-4X-A Specification |
|
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 392 Gbps |
| Forwarding rate | 291.66 Mpps |
| Mean time between failures (hours) | 337,360 |
