Product Details:
|
| Name: | C9300-48UB-A Cisco Catalyst 9300 Switch UPOE Deep Buffer Network Advantage | Product Model: | C9300-48UB-A |
|---|---|---|---|
| Forwarding Performance: | 132 Mpps | Switching Capacity2: | 176 Gbit/s/432 Gbit/s |
| Fixed Ports: | 48 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports | PoE+: | Supported |
| Port: | Shanghai | Keywords: | Cisco Catalyst C9300 Switches |
| High Light: | C9300-48UB-A Cisco Ethernet Switch,Catalyst 9300 Switch UPOE,Catalyst 9300 Cisco Network Switches |
||

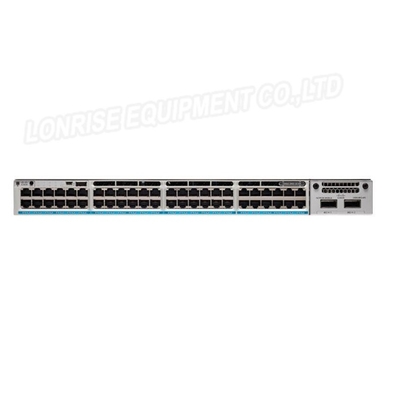

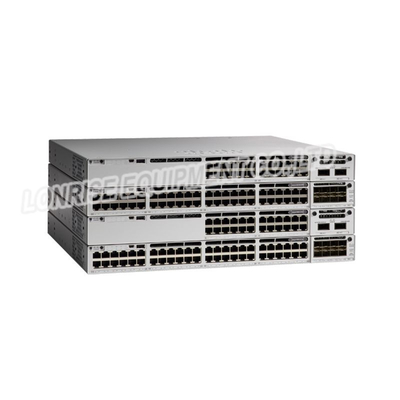

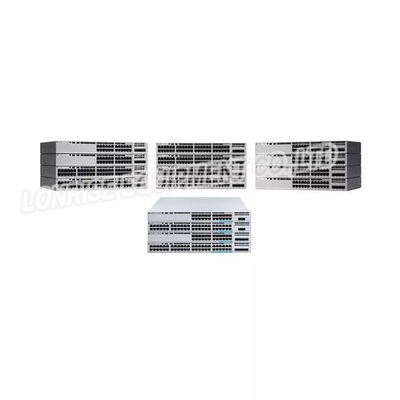

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform..
C9300-48UB-A Specification |
|
| Product Description |
Catalyst 9300 higher scale 48-port modular uplinks 1G UPOE, Network Advantage |
| FRU Power Supply | Yes |
| FRU Fans | Yes |
| Modular Uplinks | Yes |
| Cisco StackPower | Yes |
| Stacking Bandwidth Support | 480 Gbps |
| Catalyst 9800 Embedded WLC | Yes (200 APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 1100W AC |
| Available PoE power | 822W |
| Total number of MAC addresses | 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 64,000 |
| IPv6 routing entries | 32,000 |
| Multicast routing scale | 16,000 |
| QoS scale entries | 18,000 |
| ACL scale entries | 18,000 |
| Packet buffer per SKU |
32 MB buffer for 24- and 48-port Gigabit Ethernet models 64 MB buffer for 24-port Multigigabit model (24UXB)
|
| FNF entries |
128,000 flow on 24- and 48-port Gigabit Ethernet models 256,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| Switching capacity | 256 Gbps |
| Switching capacity with stacking | 736 Gbps |
| Forwarding rate | 190.48 Mpps |
| Forwarding rate with stacking | 547.62 Mpps |
| Dimensions (H x W x D) inches |
Chassis only: 1.73 x 17.5 x 16.1 W/ Default Power Supply: 1.73 x 17.5 x 19.2 W/ 1100W Power Supply: 1.73 x 17.5 x 19.2 |
