Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Firewalls | MOQ: | 1 PCS |
| Brand: | Cisco | Product Status: | Stock |
| High Light: | ASA 5516-X Cisco Firewall,5500 Cisco ASA Firewall Device,8GE Data Cisco Firewall Device |
||

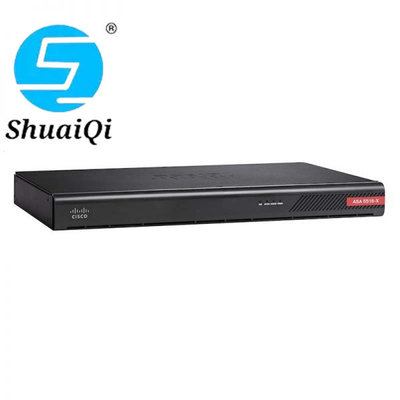

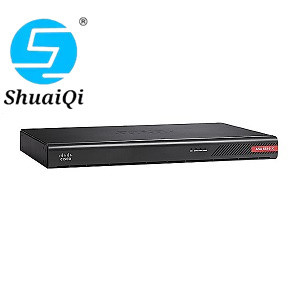

The ASA5516-FPWR-K9 is the ASA 5516-X with FirePOWER services, 8GE Data, 1GE Mgmt, AC, 3DES/AES.
ASA5516-FPWR-K9 Specification |
|
| Product Number | ASA5516-FPWR-K9 |
| Product Description | ASA 5516-X with FirePOWER services, 8GE Data, 1GE Mgmt, AC, 3DES/AES |
|
Throughput: Application Control (AVC) |
850 Mbps |
|
Throughput: Application Control (AVC) and IPS |
450 Mbps |
| Maximum concurrent sessions | 250,000 |
| Maximum New Connections per second | 20,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM (version 7.3 or higher required) |
| Feature | Cisco ASA 5516-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum) | 1.8 Gbps |
| Stateful inspection throughput (multiprotocol) | 900 Mbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput |
250 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 300 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections | 300 |
| Virtual interfaces (VLANs) | 100 |
| Security contexts(included; maximum) | 2; 5 |
| High availability | Active/Active and Active/Standby |
|
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | N/A |
| User-accessible Flash slot | No |
| USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
| Integrated I/O | 8 x 1 Gigabit Ethernet (GE) |
| Expansion I/O | N/A |
| Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
| Serial ports | 1 RJ-45 and Mini USB console |
| Solid-state drive | 100 GB mSata |
| Memory | 8 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 32 to 104°F (0 to 40 °C) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
| Acoustic noise |
41.6 dBA type |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
| AC normal line voltage | 90 to 240 VAC |
| AC current | 0.25AC amps |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | N/A |
| DC international line voltage | N/A |
| DC current | N/A |
| Steady state | 12V @ 3.0A |
| Maximum peak |
12V @ 5.0A |
| Maximum heat dissipation |
205 Btu/hr |
| Form factor | 1 rack unit (RU), 19-in. rack-mountable |
| Dimensions(H x W x D) | 1.72 x 17.2 x 11.288 in. |
| Weight (with AC power supply) | 8 lb (3 kg) |
