Product Details:
|
| Model: | C1000-48P-4X-L | Name: | C1000-48P-4X-L - Cisco Catalyst 1000 Series Switches |
|---|---|---|---|
| Key Words: | 48 Port Network Switch | Detail: | 48x 10/100/1000 Ethernet PoE+ Ports And 370W PoE Budget, 4x 10G SFP+ Uplinks |
| Iterm: | Nintendo Switch Registration Is Required To Use This Network | Gigabit Ethernet Ports: | 48 |
| Uplink Interfaces: | 4 SFP+ | PoE+power Budget: | 370W |
| High Light: | Dram Cisco Ethernet Switch,Cisco Optical Ethernet Switch,Optical Ethernet Catalyst 1000 Switches |
||

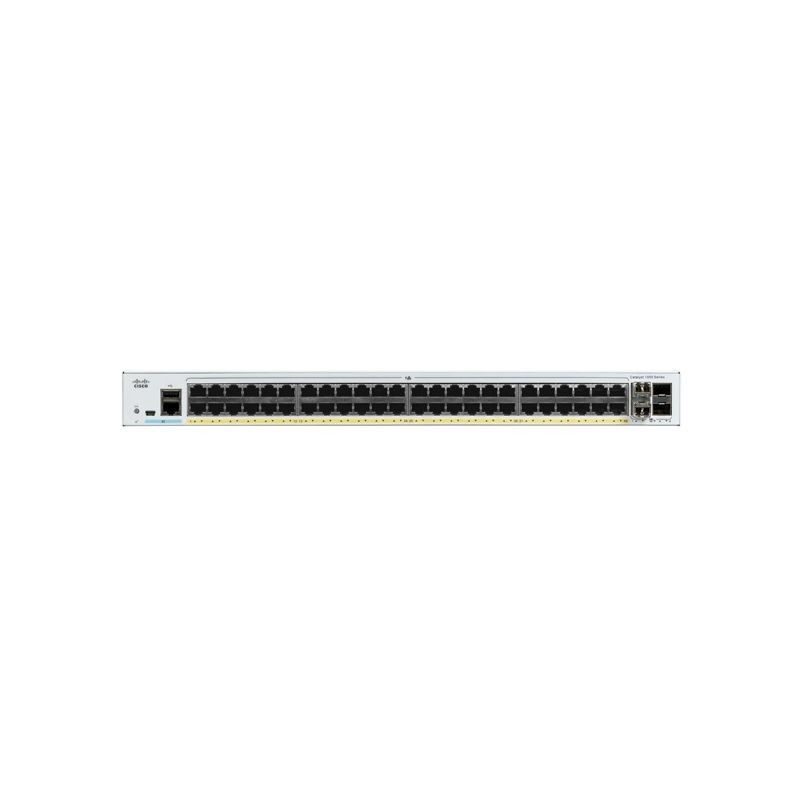

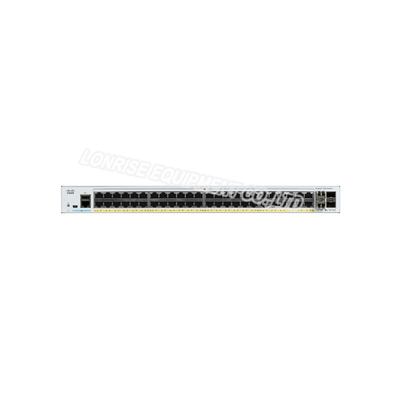

C1000 - 48P - 4X - L - Cisco Catalyst 1000 Series Switches dram optical ethernet switch
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
| Product Code | C1000-48P-4X-L |
| Description | 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks |
| Gigabit Ethernet ports | 48 |
| Uplink interfaces | 4 SFP+ |
| PoE+power budget | 370W |
| Fanless | N |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 88 Gbps |
| Switching bandwidth | 176 Gbps |
| Forwarding rate(64—byte L3 packets) | 77.38 Mpps |
| Product Code | C1000-48FP-4G-L | C1000-48P-4G-L | C1000-48T-4G-L | C1000-48FP-4X-L | C1000-48P-4X-L | C1000-48T-4X-L |
| Description | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks | 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | 48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
| Gigabit Ethernet ports | 48 | 48 | 48 | 48 | 48 | 48 |
| Uplink interfaces | 4 SFP | 4 SFP | 4 SFP | 4 SFP+ | 4 SFP+ | 4 SFP+ |
| PoE+power budget | 740W | 370W | 740W | 370W | ||
| Fanless | N | N | N | N | N | N |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 10.73 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 10.73 x 1.73 |
| CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
| DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Forwarding bandwidth | 52 Gbps | 52 Gbps | 52 Gbps | 88 Gbps | 88 Gbps | 88 Gbps |
| Switching bandwidth | 104 Gbps | 104 Gbps | 104 Gbps | 176 Gbps | 176 Gbps | 176 Gbps |
| Forwarding rate(64—byte L3 packets) | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps | 77.38 Mpps |
