C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board

C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board
C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board

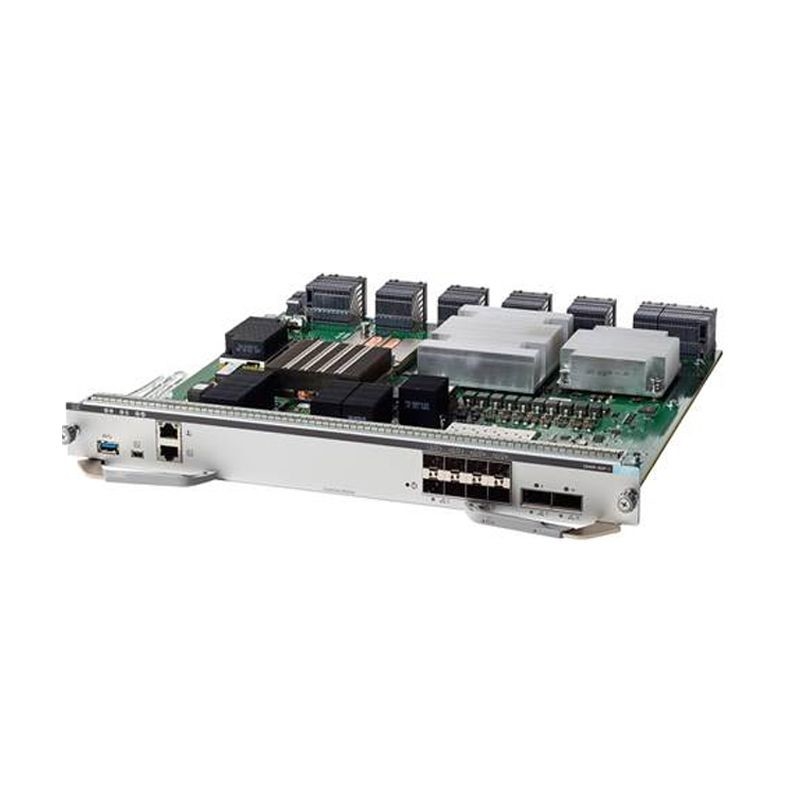

Large Image :  C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board

Product Details:
Place of Origin: USA
Brand Name: Cisco
Certification: CE
Model Number: C9400-SUP-1/2

C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules Cards Synchronous Timing Board

Description
Model: C9400-SUP-1/2 Name: C9400-SUP-1/2 - Catalyst 9400 Series Modules & Cards
Key Words: Osn Series Shared Board Detail: Cisco Catalyst 9400 Series Redundant Supervisor 1 Module
Iterm: Cross Connect Synchronous Timing Board Per-slot Switching Capacity: 80 Gbps
Total Number Of MAC Addresses: Up To 64K FNF Entries (v4/v6): Up To 384K/192K
High Light:

Catalyst 9400 Synchronous Timing Board

,

C9400 Module Cards

,

80 Gbps Module Cards

C9400 - SUP - 1 / 2 Catalyst 9400 Series Modules & Cards synchronous timing board

The Cisco® Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the most advanced network fabric to power customer business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities that include:

Simplified device deployment

Unified management of wired and wireless networks

Network virtualization and segmentation

Group-based policies

Context-based analytics

C9400-SUP-1/2 Specification

Centralized wired capacity Up to 1.44 Tbps
Per-slot switching Capacity 80 Gbps
Total number of MAC addresses Up to 64K
Total number of IPv4 routes (ARP plus learned routes) Up to 112K
FNF entries (v4/v6) Up to 384K/192K
DRAM 16 GB
Flash 10 GB
VLAN IDs 4096
SSD Capacity 960 GB
Total Switched Virtual Interfaces (SVIs) 4,000
Jumbo frame 9216 bytes
Forwarding Rate

● 900 Mpps for IPv4

● 450 Mpps for IPv6

IPv4 Routing Entries Up to 112K
IPv6 Routing Entries Up to 56K
Multicast Routes Up to 16K
QoS Hardware Entries Up to 18K
Security ACL Hardware Entries Up to 18K
Packet Buffer 96 MB
Physical specifications

(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)

Weight: 10 lbs (4.5 kg)
