Product Details:
|
| Model: | C9800-L-C-K9 | Name: | C9800-L-C-K9 - Cisco WLAN Controller |
|---|---|---|---|
| Key Words: | Cisco Catalyst 9800-L (Copper Uplink) Wireless Controller | Maximum Number Of Access Points: | 250 |
| Maximum Number Of Clients: | 5000 | Maximum Throughput: | 5 Gbps |
| Maximum WLANs: | 4096 | Maximum VLANs: | 4096 |
| High Light: | Copper Uplink Wireless Controller,Cisco Wireless WLAN Controller |
||

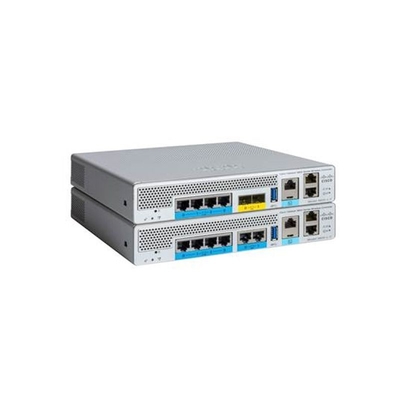

C9800-L-C-K9 - Cisco WLAN Controller Cisco Catalyst 9800-L (Copper Uplink) Wireless Controller
The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.
| Product Code | C9800-L-C-K9 |
| Description | Cisco Catalyst 9800-L Wireless Controller_Copper Uplink (ships with one AC Power Adapter) |
| Dimensions (H x W x D) | 1.58 in. (4.02 cm) x8.5 in. (21.59 cm)x9.06 in. (23.01 cm) |
| Maximum number of access points | 250 |
| Maximum number of clients | 5000 |
| Maximum throughput | 5 Gbps |
| Maximum WLANs | 4096 |
| Maximum VLANs | 4096 |
| Fixed uplinks | 2x 10G/Multigigabit copper or 2x 10G/Multigigabit fiber |
| Power supply | 110W, 12VDC, AC/DC adapter |
| Maximum power consumption | 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) |
| Product Code | C9800-L-F-K9 | C9800-L-C-K9 |
| Description | Cisco Catalyst 9800-L Wireless Controller_Fiber Uplink (ships with one AC Power Adapter) | Cisco Catalyst 9800-L Wireless Controller_Copper Uplink (ships with one AC Power Adapter) |
| Dimensions (H x W x D) | 1.58 in. (4.02 cm) x8.5 in. (21.59 cm)x9.06 in. (23.01 cm) | 1.58 in. (4.02 cm) x8.5 in. (21.59 cm)x9.06 in. (23.01 cm) |
| Maximum number of access points | 250 | 250 |
| Maximum number of clients | 5000 | 5000 |
| Maximum throughput | 5 Gbps | 5 Gbps |
| Maximum WLANs | 4096 | 4096 |
| Maximum VLANs | 4096 | 4096 |
| Maximum power consumption | 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) | 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) |
| Maximum heat dissipation | 288.2 Btu/hr (assumes 2pc 2.5W SFP and with 4.5W USB load) | 296.4 Btu/hr (with 4.5W USB load) |
