Product Details:
|

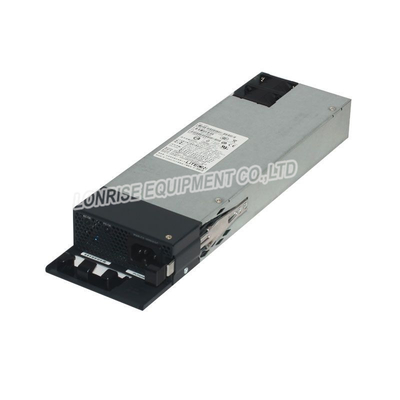

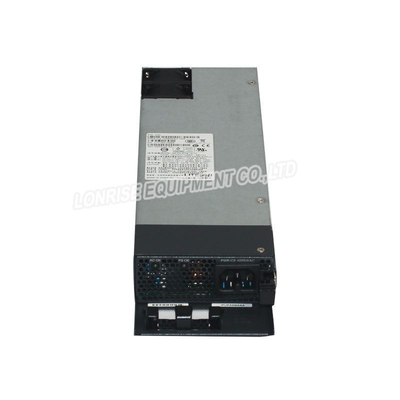

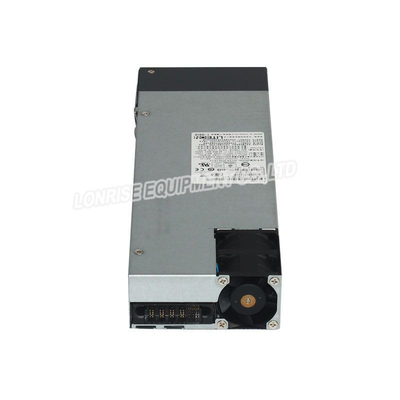

| Model: | PWR-C2-1025WAC= | Name: | PWR-C2-1025WAC= Catalyst 3650 Series Spare Power Supply |
|---|---|---|---|
| Detail: | 1025W AC Config 2 Power Supply Spare | Keywords: | Power Supply PWR-C2-1025WAC= |
| Total Output: | BTU (Note: 1000 BTU Per Hr = 293 W) 3497 BTU/hr, 1025W | Input Current: | 12-6A |
| Power Cord Rating: | 13A | Output Holdup Time: | 10 Ms Minimum @ 102.5VAC |
| High Light: | AC Config 2 Power Supply Spare,Catalyst 3650 Power Supply Spare,2 Power Supply 1025WAC |
||
| Product Code | PWR-C2-1025WAC= |
| Power Supply Rated Maximum | 1025W |
| Total Output BTU (Note: 1000 BTU per hr = 293 W) | 3497 BTU/hr, 1025W |
|
Input-Voltage Range and Frequency (Note: ±10% of "Input-Voltage Range”) |
115-240VAC, 50-60 Hz |
| Input Current | 12-6A |
| Output Ratings |
12V @ 20.83A -54V @ 14.6A |
| Output Holdup Time | 10 ms minimum @ 102.5VAC |
| Power-Supply Input Receptacles |
IEC 320-C16 (IEC60320-C16) |
| Power Cord Rating | 13A |
| Physical Specifications |
(H x W x D): 1.58 X 3.75 X 13.25 in (4.0 x 9.5 x 33.7 cm) Weight: 3.55 lb (1.61 kg) |
PWR-C2-1025 WAC= Specification |
|
| Power Supply Rated Maximum | 1025W |
| Total Output BTU (Note: 1000 BTU per hr = 293 W) | 3497 BTU/hr, 1025W |
|
Input-Voltage Range and Frequency (Note: ±10% of "Input-Voltage Range”) |
115-240VAC, 50-60 Hz |
| Input Current | 12-6A |
| Output Ratings |
12V @ 20.83A -54V @ 14.6A |
| Output Holdup Time | 10 ms minimum @ 102.5VAC |
| Power-Supply Input Receptacles |
IEC 320-C16 (IEC60320-C16) |
| Power Cord Rating | 13A |
| Physical Specifications |
(H x W x D): 1.58 X 3.75 X 13.25 in (4.0 x 9.5 x 33.7 cm) Weight: 3.55 lb (1.61 kg) |
| Operating Temperature | For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1. |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Relative Humidity Operating and Nonoperating Noncondensing | 5 to 96% noncondensing |
| Altitude | 16,400 ft. (5,000 meters) |
| MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
| EMI and EMC Compliance |
“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
| Safety Compliance | For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1. |
| LED Indicators | -40 to 158°F (-40 to 70°C) |
| Product Code | PWR-C2-250WAC= | PWR-C2-640WDC= | PWR-C2-1025WAC= |
| Power Supply Rated Maximum | 250W | 640W | 1025W |
| Total Output BTU (Note: 1000 BTU per hr = 293 W) | 853 BTU/hr, 250W | 2188 BTU/hr, 640W | 3497 BTU/hr, 1025W |
|
Input-Voltage Range and Frequency (Note: ±10% of "Input-Voltage Range”) |
100-240VAC, 50-60 Hz |
-36VDC to -72VDC |
115-240VAC, 50-60 Hz |
| Input Current | 4-2A | 21 - 10.5 A | 12-6A |
| Output Ratings | 12V @ 20.83A |
12V @ 20.83A -54V @ 7.36A |
12V @ 20.83A -54V @ 14.6A |
| Output Holdup Time | 16.7 ms minimum @ 100VAC | > 2ms@-48VDC | 10 ms minimum @ 102.5VAC |
| Power-Supply Input Receptacles | IEC 320-C13 (IEC60320-C13) | Terminal strip |
IEC 320-C16 (IEC60320-C16) |
| Power Cord Rating | 10A | 20A @ 100VDC | 13A |
