Product Details:
|
| Modle: | WS-C3850-48XS-S | Name: | WS-C3850-48XS-S Catalyst 3850 Switch SFP+ |
|---|---|---|---|
| Detail: | Cisco Catalyst 3850 48 Port 10G Fiber Switch IP Base | Enclosure Type: | 1 RU |
| Feature Set: | IP Base | Ports: | 48 X 10/100/1000 10G SFP+ Optical Ports |
| Maximum Stacking Number: | 9 | Stack Bandwidth: | 480 Gbps |
| High Light: | Catalyst 3850 Gigabit Network Switch,C3850 Optical Ethernet Switch,Network Ethernet Managed Switch Sfp |
||

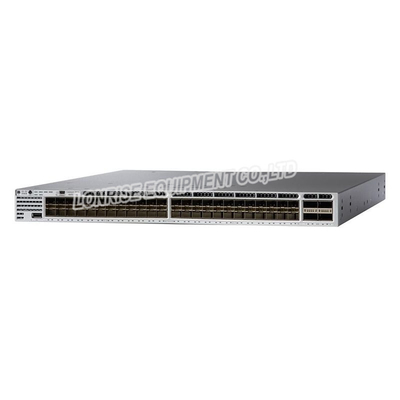

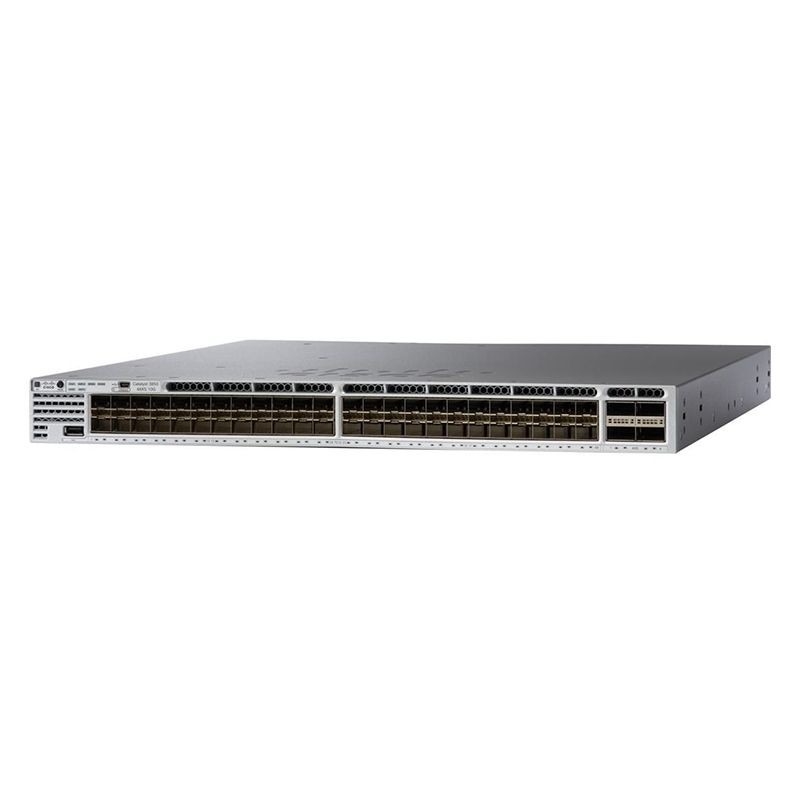

WS - C3850 - 48XS - S Catalyst 3850 Switch SFP + best price in stock
WS-C3850-48XS-S switch provides 48 ports 10Gbps SFP+ connection with upgradeable IP base image and build in wireless controller provide fully convergence between wired and wireless on a single platform.
WS-C3850-48XS-S Specification |
|
| model info: | WS-C3850-48XS-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 48 x SFP+ ports |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 1280 Gbps |
| Maximum stacking number | 9 |
| FNF entries | 96,000 flows |
| Maximum VLANs IDs | 1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | Up to 40 Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Power supply | PWR-C3-750WAC-R |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Miscellaneous | |
| Dimension | 4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch) |
| Weight | 7.45 kg |
| Rack Mounting Kit | optional |
| MTBF in hours | 286,900 |
| Models | WS-C3850-12XS-S | WS-C3850-48XS-S |
| Feature Set | IP Base | IP Base |
| Ports | 12 ports of 10G SFP+ Ethernet fiber connection with Flexible Netflow feature | 48 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
| Network SFP uplink module selection | C3850-NM-4-10G | None |
