Product Details:
|
Model: | Cisco ISR 4321 | Name: | Cisco ISR 4321 (2GE,2NIM,4G FLASH,4G DRAM,IP Base) |
---|---|---|---|
Detail: | 50Mbps-100Mbps System Throughput, 2 WAN/LAN Ports, 1 SFP Port, Multi-Core CPU,2 NIM, Security, Voice, WAAS | Aggregate Throughput: | 50 Mbps To 100 Mbps |
Total Onboard WAN Or LAN 10/100/1000 Ports: | 2 | RJ-45-based Ports: | 2 |
SFP-based Ports: | 1 | NIM (Network Interface Modules) Slots: | 2 |
High Light: | IP Gigabit Network Switch 4321,4G Flash Ethernet Managed Switch,Dram Ethernet Managed Switch |

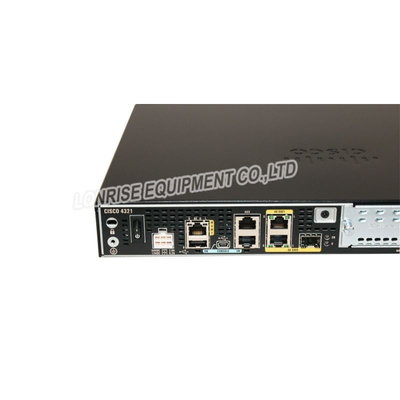

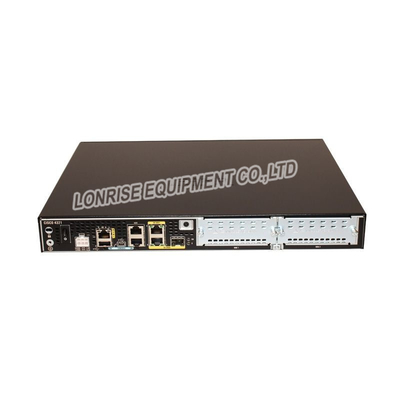

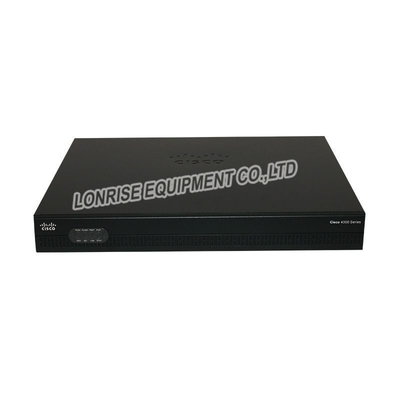

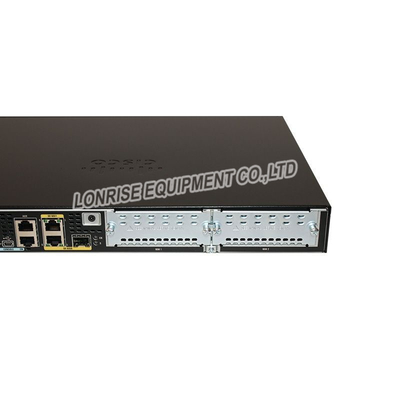

Cisco ISR 4321 2GE 2NIM 4G FLASH 4G DRAM IP BASE
Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses.
Product Code | Cisco ISR4321/K9 |
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
NIM (Network Interface Modules) slots | 2 |
Onboard ISC slot | 1 |
Memory | 4 GB (default) / 8 GB (maximum) |
Flash Memory | 4 GB (default) / 8 GB (maximum) |
Power-supply options | External: AC and PoE |
Rack height | 1 RU |
Dimensions (H x W x D) | 44.55 x 369.57 x 294.64 mm |
Package Weight | 9.19 Kg |
Cisco ISR4321/K9 Specification |
|
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
Power-supply options | External: AC and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90 A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 36 |
Maximum power with AC power supply (watts) | 125 |
Maximum power with PoE power supply (platform only) (watts) | 260 |
Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
Technical Specifications | ISR4461/K9 | ISR4451-X/K9 | ISR4431/K9 | ISR4351/K9 | ISR4331/K9 | ISR4321/K9 | ISR4221/K9 |
Aggregate Throughput | 1.5Gbps |
1 Gbps to 2 Gbps |
500 Mbps to 1 Gbps |
200 Mbps to 400 Mbps |
100 Mbps to 300 Mbps |
50 Mbps to 100 Mbps |
35 Mbps to 75 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
Enhanced service-module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
Doublewide service-module slots | 2 | 1 (assumes no singlewide SM-X modules installed) | 0 | 1 (assumes no singlewide SM-X modules installed) | 0 | 0 | 0 |
NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
