Product Details:
|
| Model: | C9300-48P-A | Name: | C9300-48P-A - Cisco Switch Catalyst 9300 |
|---|---|---|---|
| Detail: | Cisco Catalyst 9300 48-port PoE+, Network Advantage, Cisco 9300 Switch | Product Description: | Catalyst 9300 48-port PoE+, Network Advantage |
| Total 10/100/1000 Or Multigigabit Copper Ports: | 48 POE+ | Default AC Power Supply: | 715W AC |
| Available PoE Power: | 437W | Dimensions (H X W X D): | 1.73 X 17.5 X 17.5 Inches |
| High Light: | 48P Catalyst 9300 Switch,Network Catalyst 9300 Switch |
||

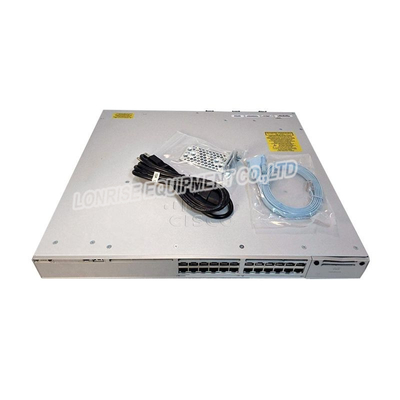

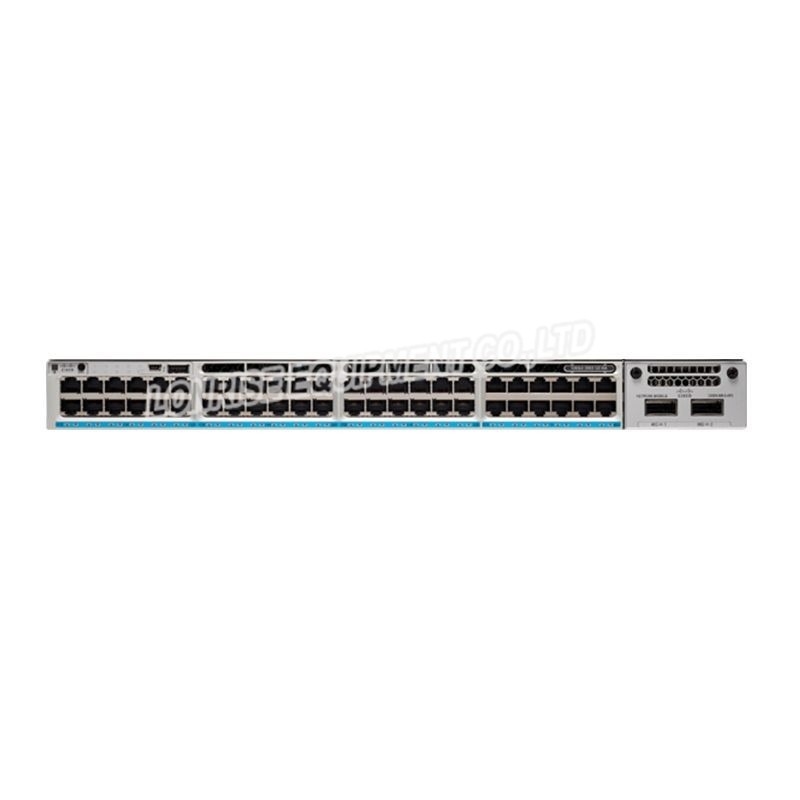

C9300 - 48P - A - Cisco Switch Catalyst 9300 best price in stock
| Product Code | C9300-48P-A |
| Product Description | Catalyst 9300 48-port PoE+, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 48 POE+ |
| Default AC power supply | 715W AC |
| Available PoE power | 437W |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Product number | Description |
| C9300-NM-4G | 9300 Series 4x 1G Network Module |
| C9300-NM-4G= | Catalyst 9300 4 x 1GE Network Module, spare |
| C9300-NM-8X | 9300 Series 8x 10G Network Module |
| C9300-NM-8X= | Catalyst 9300 8 x 10GE Network Module, spare |
| C9300-NM-2Q | 9300 Series 2x 40G Network Module |
| C9300-NM-2Q= | Catalyst 9300 2 x 40GE Network Module, spare |
| C9300-NM-4M | 9300 Series 4x Multigigabit Network Module |
| C9300-NM-4M= | Catalyst 9300 4 x MGig Network Module, spare |
| Product Code | C9300-48P-A | C9300-24P-A |
| Product Description | Catalyst 9300 48-port PoE+, Network Advantage | Catalyst 9300 24-port PoE+, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 48 POE+ | 24 POE+ |
| Default AC power supply | 715W AC | 715W AC |
| Available PoE power | 437W | 445W |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds | 16.33 Pounds |
C9300-48P-A Specification |
|
| Part Number | C9300-48P-A |
| Product Description | Catalyst 9300 48-port PoE+, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 48 POE+ |
| Default AC power supply | 715W AC |
| Available PoE power | 437W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-715WAC-P/2 |
| Switching capacity | 256 Gbps on 48-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
