Product Details:
|
| Model: | ASA5525-K9 | Name: | ASA5525-K9 Cisco ASA 5500 Series Firewall Edition Bundle |
|---|---|---|---|
| Detail: | Cisco ASA 5500 Edition Bundle ASA5525-K9 ASA 5525-X With SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES | Stateful Inspection Throughput (maximum): | 2 Gbps |
| 3DES/AES VPN Throughput: | 300 Mbps | IPsec VPN Peers: | 750 |
| Virtual Interfaces (VLANs): | 200 | Memory: | 8 GB |
| High Light: | Bundle Cisco ASA 5500 Series Firewall,Edition Cisco ASA 5500 Series Firewall |
||

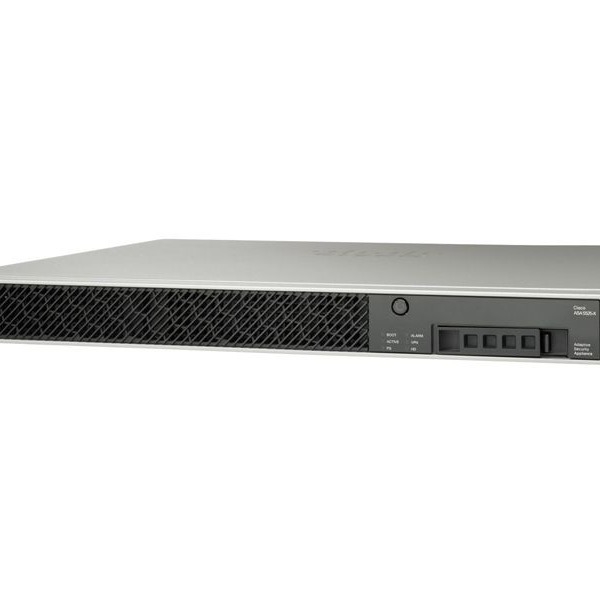

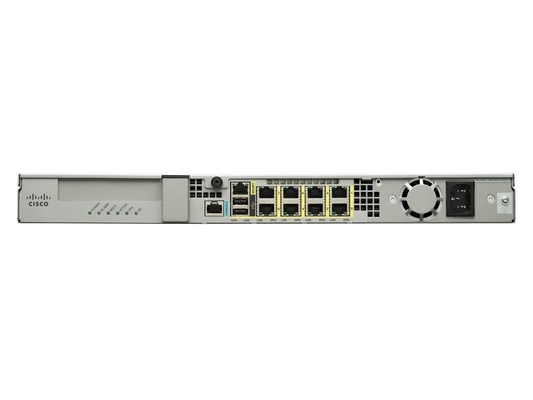

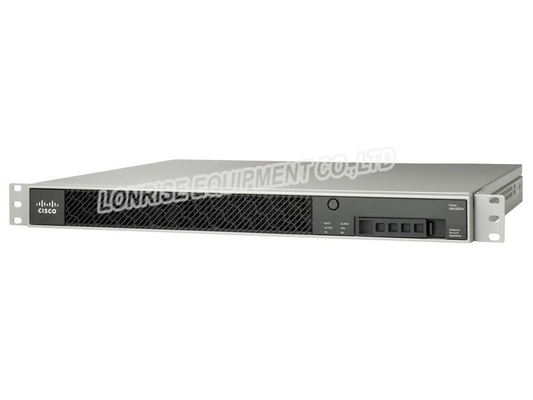

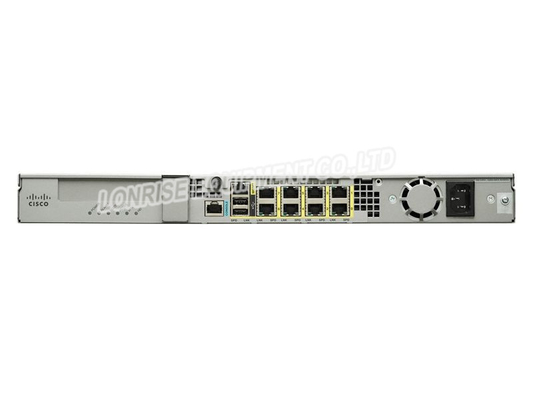

ASA5525 - K9 Cisco ASA 5500 Series Firewall Edition Bundle best price in stock
Cisco ASA 5525-K9 delivers superior performance with up to 2 Gbps stateful inspection throughput, 750 IPsec VPN peers, 500,000 concurrent connections and 1 expansion slot makes it ideally suited for the small, mid-size enterprises, branch offices or internet edge deployments while delivering enterprise-strength security.
| Product Code | ASA5525-K9 |
| Interfaces |
8 copper GE ports, 1 copper GE management port, 1 expansion slot |
| Stateful inspection throughput (maximum) | 2 Gbps |
| 3DES/AES VPN throughput | 300 Mbps |
| IPsec VPN peers | 750 |
| Virtual interfaces (VLANs) | 200 |
| Memory | 8 GB |
| Flash | 8 GB |
| Height (rack units) | 1 RU |
| Dimensions (D x H x W) | 4.45 x 20.04 x 36.2 cm |
| Package Weight | 13.1 Kg |
| Models | ASA5512-K9 | ASA5515-K9 | ASA5525-K9 |
| Stateful Inspection Throughput (maximum) | 1 Gbps | 1.2 Gbps | 2 Gbps |
| Next-generation firewall throughput (multiprotocol) | 200 Mbps | 350 Mbps | 650 Mbps |
| Memory | 4GB | 8GB | 8GB |
| Flash | 4GB | 8GB | 8GB |
| Height (rack units) | Desk Top | 1 RU | 1 RU |
ASA5525-K9 Specifications |
|
| Feature | ASA5525-K9 |
| Stateful Inspection Throughput (Maximum) | 2 Gbps |
| Stateful Inspection Throughput (Multiprotocol) | 1 Gbps |
| IPS Throughput | 600 Mpbs |
| Next-Generation Throughput(Multiprotocol) | 650 Mbps |
| 3DES/AES VPN Throughput | 300 Mbps |
| Users/Nodes | Unlimited |
| IPsec VPN Peers | 750 |
| Cisco Cloud Web Security Users | 4,000 |
| Premium AnyConnect VPN Peers(Included/Maximum) | 2/750 |
| Concurrent Connections | 500,000 |
| New Connections/Second | 20,000 |
| Virtual Interfaces (VLANs) | 200 |
| Security Contexts (Included/Maximum)6 | 2; 20 |
| High Availability | Active/Active and Active/Standby |
| Expansion Slot | 1 interface card |
| User-Accessible Flash Slot | 0 |
| USB 2.0 Ports | 2 |
| Integrated I/O | 8 GE Copper |
| Expansion I/O | 6 GE Copper or 6 GE SFP |
| Serial Ports | 1 RJ-45 console |
| Solid State Drive | 1 slot, 120 GB MLC SED |
| Memory | 8 GB |
| Minimum System Flash | 8 GB |
| System Bus | Multibus architecture |
| Temperature | 23 to 104°F (-5 to 40°C) |
| Relative Humidity | 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3050m) |
| Shock | 50G, 2 m/sec |
| Vibration | 0.41 Grms2 (3 to 500 Hz) random input |
| Acoustic Noise | 64.2 dBa max |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative Humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4570m) |
| Shock | 70G, 4.22 m/sec |
| Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
| AC Range Line Voltage | 100 to 240 VAC |
| AC Normal Line Voltage | 100 to 240 VAC |
| AC Current | 4.85A |
| AC Frequency | 50/60 Hz |
| Dual-Power Supplies | None |
| DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC International Line Voltage | -55 to -72 VDC (-60 VDC nominal) |
| DC Current | 15A (maximum input) |
| Steady State | 75W |
| Maximum Peak | 108W |
| Maximum Heat Dissipation | 369 BTU/hr |
| Form Factor | 1 RU, 19-in. rack-mountable |
| Dimensions (H x W x D) | 1.75 x 17.5 x 14.25 In (4.45 x 20.04 x 36.2 cm) |
| Weight (with AC Power Supply) | 22.0 lb (10 kg) |
| Safety | IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition |
| Electromagnetic Compatibility (EMC) |
CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008; FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24 |
| Industry Certifications | In process |
