Product Details:
|
| Model: | N3K-C3172TQ-10GT | Name: | N3K-C3172TQ-10GT - Cisco Nexus 3000 Series Switch |
|---|---|---|---|
| Detail: | Nexus 3172TQ Switch, 48 10GBase-T RJ-45 And 6 QSFP+ Ports | Enclosure Type: | 1 RU |
| Switching Capacity: | 1.4-Tbps | Forwarding Rate: | Up To 1 Bpps |
| System Memory: | 4 GB | Number Of Power Supplies: | 2 |
| Highlight: | Cisco Nexus 3000 Poe Ethernet Switch,Cisco Gigabyte Network Switch |
||
N3K - C3172TQ - 10GT - Cisco Nexus 3000 Series Switch best price in stock

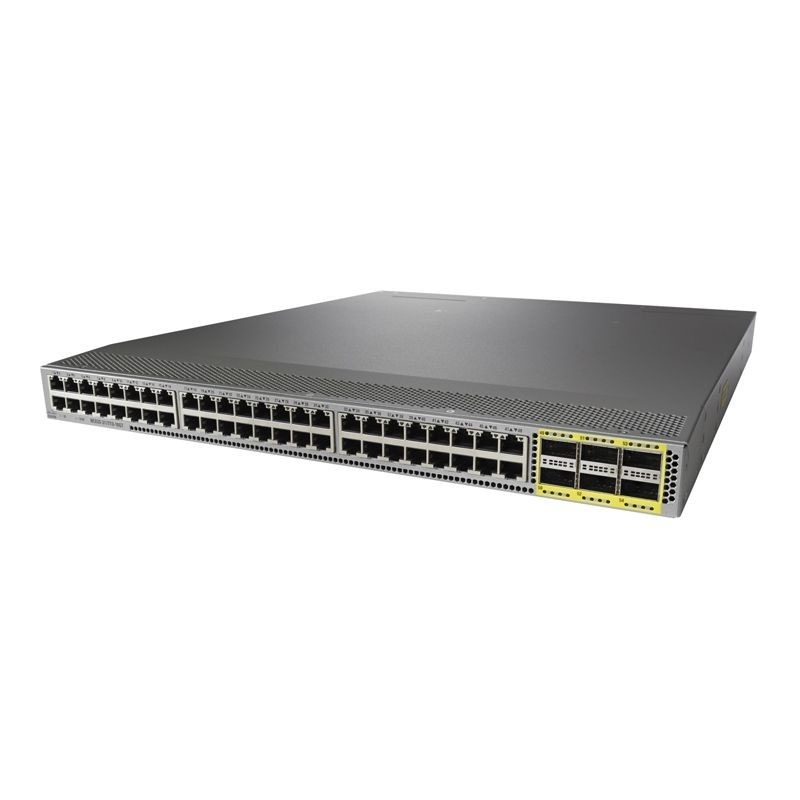

The Cisco Nexus 3172TQ (N3K-C3172TQ-10GT) is a 1 rack unit (RU), 10GBASE-T switch with 48 10GBASE-T RJ-45 ports (each port can operate at 100-Mbps and 1-Gbps speeds) and 6 Quad SFP+ (QSFP+) ports (each QSFP+ port can support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet).
| Product Code | N3K-C3172TQ-10GT |
| Enclosure Type | 1 RU |
| Switching Capacity | 1.4-Tbps |
| Forwarding Rate | Up to 1 bpps |
| Configurable Maximum Transmission Units (MTUs) | Up to 9216 bytes (jumbo frames) |
| Ports | 48 x 1/10GBase-T and 6 QSFP+ ports |
| System Memory | 4 GB |
| Number of Power Supplies | 2 |
| Typical Operating Power | 360 W |
| Dimensions (H x W x D) | 4.4 x 43.9 x 50.5 cm |
| Net Weight | 10 Kg |
N3K-C3172TQ-10GT Specifications |
|||
| Physical |
● 1RU fixed form factor ● 72 x 10 Gigabit Ethernet ports (48 10GBASE-T and 6 QSFP+) ◦ 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps ◦ 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each ● Redundant fans (3+1) ● 2 redundant power supplies ● Management, console, and USB flash-memory ports |
||
| Performance |
● 1.4-Tbps switching capacity ● Forwarding rate of up to 1 bpps ● Line-rate traffic throughput (both Layer 2 and 3) on all ports ● Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
||
| Hardware tables and scalability | Number of MAC addresses | 288,000 | |
| Number of VLANS | 4096 | ||
| Number of spanning-tree instances |
● RSTP: 512 ● MSTP: 64 |
||
| Number of ACL entries |
● 4000 ingress ● 1000 egress |
||
| Routing table |
● 16,000 prefixes and 16,000 host entries* ● 8000 multicast routes* |
||
| Number of EtherChannels | 64 (with vPC) | ||
| Number of ports per EtherChannel | 32 | ||
| System memory | 4 GB | ||
| Buffer size | 12 MB shared | ||
| Boot flash | 16 GB | ||
| Power | Number of power supplies | 2 | |
| Power supply types |
● AC (forward and reversed airflow) ◦ - N2200-PAC-400W and N2200-PAC-400W-B (PQ models) ◦ - NXA-PAC-500W and NX-PAC-500W-B (TQ models) ● DC (forward and reversed airflow) ◦ - N2200-PDC-400W and N3K-PDC-350W-B (PQ models) ◦ - NXA-PDC-500W and NX-PDC-500W-B (TQ models) |
||
| Typical operating power | 360 W | ||
| Maximum power | 440W | ||
|
AC PSUs ● Input voltage ● Frequency ● Efficiency |
● 100 to 240 VAC ● 50 to 60 Hz ● 89 to 91% at 220V |
||
|
DC PSUs ● Input voltage ● Maximum current (PSU output – System input) ● Efficiency |
● –40 to –72 VDC ● 33A (400W unit), 42A (500W unit) ● 85 to 88% |
||
| Cooling |
● Forward and reversed airflow schemes: ◦ Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports) ◦ Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies) ● Redundant fans ● Hot swappable (must swap within 1 minute) |
||
| Sound |
Measured sound power (maximum) ● Fan speed: 40% duty cycle ● Fan speed: 70% duty cycle ● Fan speed: 100% duty cycle |
● 64.9 dBA ● 69.3 dBA ● 76.7 dBA |
|
| Environment | Dimensions (height x width x depth) |
1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) | |
| Weight | 22.0 lb (10 kg) | ||
| Operating temperature | ● 32 to 104°F (0 to 40°C) | ||
| Storage temperature | ● -40 to 158°F (-40 to 70°C) | ||
| Operating relative humidity |
● 10 to 85% noncondensing ● Up to 5 days at maximum (85%) humidity ● Recommend ASHRAE data center environment |
||
| Storage relative humidity | ● 5 to 95% noncondensing | ||
| Altitude | ● 0 to 10,000 ft (0 to 3000m) | ||
| Safety and EMC | |||
| Regulatory compliance | ● Products should comply with CE Markings per directives 2004/108/EC and 2006/95/EC. | ||
| Safety |
● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 |
||
| EMC: Emissions |
● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A |
||
| EMC: Immunity |
● EN55024 ● CISPR24 ● EN300386 ● KN24 |
||
| RoHS | ● RoHS 5 compliant except for lead press-fit connectors | ||
