Product Details:
|
| Model: | WS-C3850-24T-S | Name: | WS-C3850-24T-S Catalyst 3850 Switch |
|---|---|---|---|
| Enclosure Type: | 1 RU | Feature Set: | IP Base |
| Ports: | 24 * 10/100/1000 Ethernet Ports | Stack Bandwidth: | 480 Gpbs |
| Switching Capacity: | 92 Gpbs | RAM: | 4 GB |
| High Light: | 24 Port Catalyst 3850 Switch,Catalyst 3850 Switch IP Base |
||

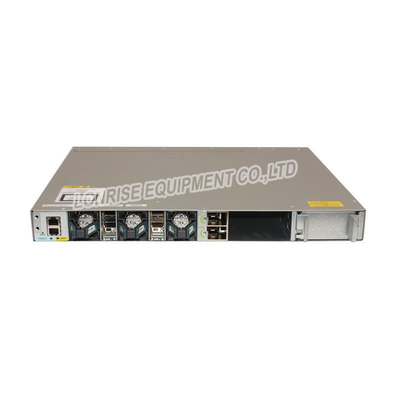

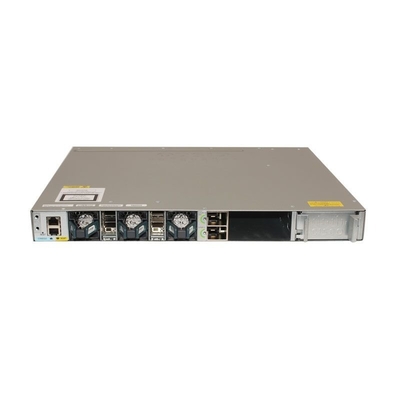

WS - C3850 - 24T - S Catalyst 3850 Switch Cisco Catalyst 3850 24 Port IP Base
Cisco 3850 series 24 ports IP Base stackable switch delivers Layer 3 routing features, including OSPF stub, EIGRP stub, RIPv1, v2, PIM stub.
| Product Code | WS-C3850-24T-S |
| Enclosure Type | 1 RU |
| Feature Set | IP Base |
| Network SFP uplink module selection | |
| Ports | 24 * 10/100/1000 Ethernet ports |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gpbs |
| Switching Capacity | 92 Gpbs |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Dimensions | 4.45 cm x 44.5 cm x 45.0 cm |
| Package Weight | 17.49 Kg |
WS-C3850-24T-S Specification |
|
| model info: | WS-C3850-24T-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 92Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 68.4Mpps |
| FNF entries | 24,000 flows |
| Maximum VLANs IDs | 4,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
| Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
| Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length |
| Power supply | PWR-C1-350WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 84.97 (max) |
