Product Details:
|
| Model: | ISR4331/K9 | Name: | Cisco 4000 Router ISR4331 (3GE,2NIM,1SM,4G FLASH,4G DRAM,IP Base) Detail: Cisco 4000 Router, 100Mbps-300Mbps System Throughput, 3 WAN/LAN Ports, |
|---|---|---|---|
| Detail: | 2 SFP Ports, Multi-Core CPU,1 Service Module Slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC | Aggregate Throughput: | 100 Mbps To 300 Mbps |
| Memory: | 4 GB (default) / 16 GB (maximum) | Flash Memory: | 4 GB (default) / 16 GB (maximum) |
| Power-supply Options: | Internal: AC And PoE | Rack Height: | 1 RU |
| Package Weight: | 12.96 Kg | ||
| High Light: | ISR4331 Cisco Router Switch Module,4g Flash Cisco Network Module,Multi Core CPU Cisco Service Module |
||

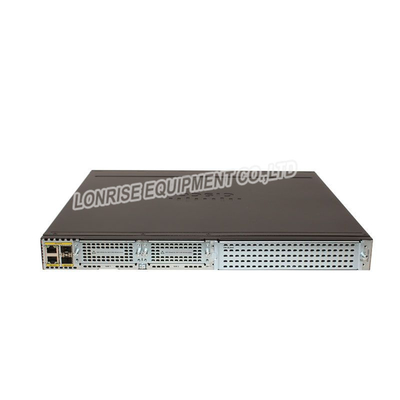

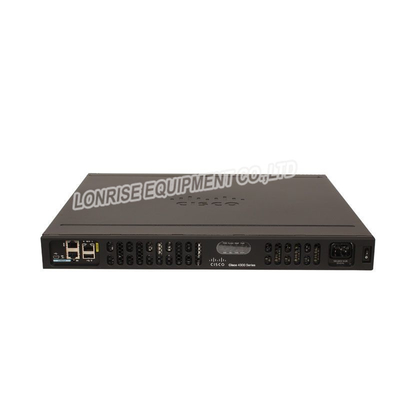

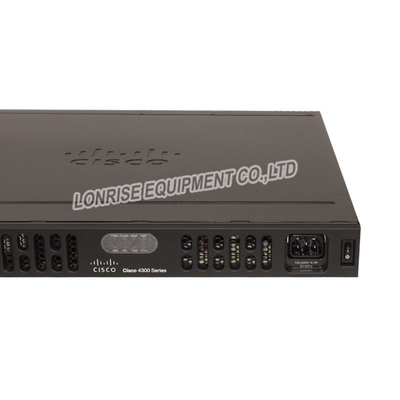

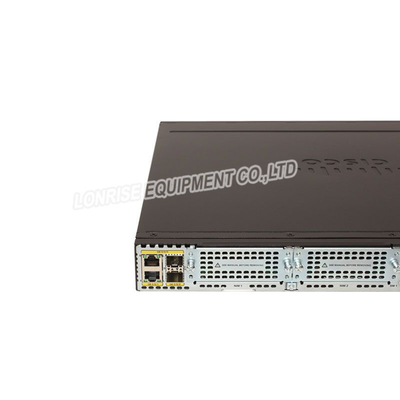

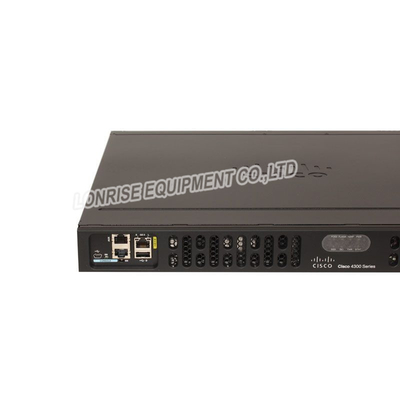

Cisco 4000 Router ISR4331 / K9 ( 3GE 2NIM 1SM 4G FLASH 4G DRAM IP Base )
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.
Cisco ISR4331/K9 Specification |
|
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | Internal: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 42 |
| Maximum power with AC power supply (watts) | 250 |
| Maximum power with PoE power supply (platform only) (watts) | 530 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
| Technical Specifications | ISR4461/K9 | ISR4451-X/K9 | ISR4431/K9 | ISR4351/K9 | ISR4331/K9 | ISR4321/K9 | ISR4221/K9 |
| Aggregate Throughput | 1.5Gbps |
1 Gbps to 2 Gbps |
500 Mbps to 1 Gbps |
200 Mbps to 400 Mbps |
100 Mbps to 300 Mbps |
50 Mbps to 100 Mbps |
35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
| RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
| SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
| Enhanced service-module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
| Doublewide service-module slots | 2 | 1 (assumes no singlewide SM-X modules installed) | 0 | 1 (assumes no singlewide SM-X modules installed) | 0 | 0 | 0 |
| NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
