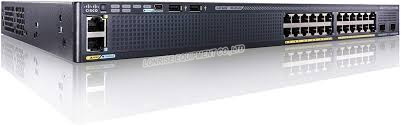

WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base

Certification
China LonRise Equipment Co. Ltd. certification
China LonRise Equipment Co. Ltd. certification
Customer Reviews
It's good supplier with good service.

—— Mark Rejardest

LonRise it's goods supplier it's value business.

—— David Vike Moj

Very pleasant cooperation, valuable supplier, will continue to keep cooperation

—— Johnny Zarate

During the delivery the goods was damaged by the DHL, but LonRise arrange the new goods to us timely, really goods very appreciate for our supplier

—— Li Papageorge

Trustable supplier in China, Very happy to do business with Lonrise.

—— Rohit Verma

Good quality with good price, it's my first time to purchase equipment from China, Fast delivery, DHL 3 days to Mexico, Nice experience.

—— Sergio varela

I'm Online Chat Now

WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base

WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base
WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base

Large Image :  WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base

Product Details:
Place of Origin: USA
Brand Name: CISCO
Certification: CE
Model Number: WS-C2960X-24PS-L

WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base

Description
Model: WS-C2960X-24PS-L Name: WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 X 1G SFP LAN Base
Detail: Catalyst 2960-X 24 GigE PoE 370W, 4 X 1G SFP, LAN Base Enclosure Type: Rack-mountable - 1U
Feature Set: LAN Base Uplink Interfaces: 4 X 1G SFP
Ports: 24 X Ethernet 10/100/1000 Gigabit Ports Available PoE Power: 370W
Maximum Stacking Number: 8 Stack Bandwidth: 80G
Forwarding Bandwidth: 108Gbps Switching Bandwidth: 216Gbps
RAM: 512MB Flash Memory: 128MB
Dimensions: 44.5 Cm X 36.8 Cm X 4.5 Cm Package Weight: 10.65 Kg
High Light:

24 GigE Cisco Router Switch Module

,

LAN Base Cisco Switch Module

,

PoE Cisco Network Module

WS - C2960X - 24PS - L Catalyst 2960 - X Switch 24 GigE PoE 370W 4 x 1G SFP LAN Base

Cisco catalyst 2960X-24PS-L LAN Base stackable Layer 2 switch is comprised of 24 * 10/100/1000 Ethernet ports with POE+ and 4 * 1G SFP uplink interfaces. The industry standard IEEE802.3at PoE+ provides up to 30W per port.



WS-C2960X-24PS-L Specification

General
model info: WS-C2960X-24PS-L
enclosure type Rack-mountable - 1U
Ports 24 x 10/100/1000 + 4 x 1G SFP
Network management Interface 10/100 Mbps Ethernet (RJ-45)
Available PoE Power 370W
Forwarding bandwidth(Gbps) 108Gbps
Maximum stacking number 8
Stack Bandwidth 80G
Forwarding Performance 71.4Mpps
Switching bandwidth 216Gbps
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
RAM 512 MB
Flash Memory 128 MB
Status Indicators Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Stacking cable Optional
Power Redundancy Option (PWR-RPS2300)
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.49KVA
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 14.5 Inches (36.8 cm)
Height 1.75 Inches (4.5 cm)
Package Weight 23.48 Pounds (10.65Kg)
Weight 12.8 Pounds (5.8 Kg)
Rack Mounting Kit optional
MTBF in hours 324,280
Compliant Standards

● IEEE 802.1D Spanning Tree Protocol

● IEEE 802.1p CoS Prioritization

● IEEE 802.1Q VLAN

● IEEE 802.1s

● IEEE 802.1w

● IEEE 802.1X

● IEEE 802.1ab (LLDP)

● IEEE 802.3ad

● IEEE 802.3af and IEEE 802.3at

● IEEE 802.3ah (100BASE-X single/multimode fiber only)

● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T

● IEEE 802.3u 100BASE-TX

● IEEE 802.3ab 1000BASE-T

● IEEE 802.3z 1000BASE-X

● RMON I and II standards

● SNMP v1, v2c, and v3

● IEEE 802.3az

● IEEE 802.3ae 10Gigabit Ethernet

System software / license
System software IOS LAN BASE
license NERGY-MGT-100-K9, EW-DO-100-DE
features

●RPS Support

● Jumbo Frames

● VLANS

●Voice Vlan

●VTPv2

●CDPv2

●LLDP

● 802.3ad LACP

● PVST/PVST+

● 802.1W/802.1S

● Port Fast/Uplink Fast

● port CoS Trust and Override

● Scheduling

● Priority Queuing

● Configure CoS Priority Queues

● Weighted Tail Drop

● DSCP transparency

Network security

● SSH, SSL and SCP

● RADIUS and TACACS+

● SNMPv3 crypto

● 802.1x

● 802.1x Accounting / MIB

● 802.1x w/ port security

● 802.1x w/Voice VLAN

● 802.1x Guest VLAN

● 802.1x VLAN assignment

● 802.1x MAC-Auth Bypass

● BPDU/Root Guard

● Port Security

● Private VALN Edge

● Storm Control

● Block unknown unicast and multicast

● IGMP Snooping

● IGMP Filter/Throttle

Management and Troubleshooting

● Auto-MDOX

●TDR

● UDLD

● IP SLA Responder

● layer 2 / IP Traceroute

● SPAN

● RSPAN

● Express Setup

● Device Manager

● Cisco Network Assistant

● Smartports + Advisor

● Troubleshooting Advisor

● Drag-and-drop Cisco IOS Upgrade

● IP Address DHCP

● Autoinstall with saved configuration

● Configuration Replace

● DHCP Auto Image Upgrade

● DHCP Port Based Allocation

● Error Disable MIB

Environmental Ranges
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF
Short-term exception at sea level* 23ºF to 131ºF
Short-term exception up to 5000 feet (1500 m)* 23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)* 23ºF to 113ºF
Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF
Storage temperature up to 15,000 feet (4573 m) -13º to 158ºF
Operating altitude Up to 10,000 feet
Storage altitude Up to 13,000 feet
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
