Product Details:
|
| Product ID: | SG350X-48P-K9 | Short Description: | L3 Managed, 48 X 10/100/1000 + 2 X 10GE Combo + 2 X 10GE SFP+ |
|---|---|---|---|
| Enclosure Type: | Rack-mountable, 1RU | RAM: | 512 MB |
| Condition: | New With 1Year Replacement Warranty | Shipment: | DHL,UPS,TNT, |
| Cables Included: | 1 X Console Cable | Flash Memory: | 256 MB |
| Forwarding Bandwidth: | 130.94 Mpps | Switching Bandwidth: | 176 Gbps |
| Website: | Www.lonriseeqt.com | ||
| High Light: | POE Stackable Ethernet Network Switch,1RU Ethernet Network Switch,SG350X-48P-K9-CN |
||
SG350X-48P Overview

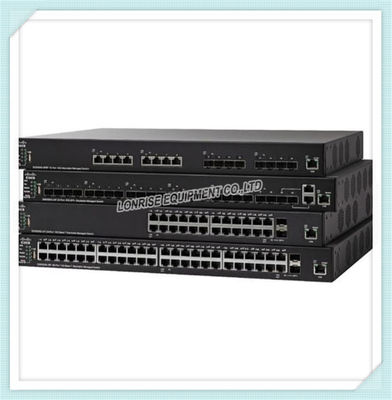

The Cisco 350X Series Stackable Managed Switches (Figure 1) are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The SG350X models provide 8 to 48 ports of Gigabit and Multigigabit Ethernet connectivity with 10 Gigabit Ethernet uplinks. The SX350X models provide 8, 12, 24, or 48 ports of 10 Gigabit Ethernet, providing a solid foundation and more than enough bandwidth for your business applications today and in the future. These switches are easy to deploy and manage without a large IT staff.
| Product Name | SG350X-48P |
| General | |
| Product ID | SG350X-48P-K9 |
| Short Description | Switch: L3 managed, 48 x 10/100/1000 + 2 x 10GE combo + 2 x 10GE SFP+, rack-mountable, PoE |
| Device type | Switch: 1G, 48 ports, L3 managed |
| Enclosure type | Rack-mountable, 1RU |
| Ports | 48 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+ |
| Power over Ethernet (PoE) | PoE, PoE+ and 60W PoE (375W) |
| Switching capacity | 176 Gbps |
| Forwarding performance (64-byte packets) | 130.94 Mpps |
| MAC address table size | 16,000 entries |
| Capacity (active VLANS) | 4000 |
| Routing protocol | Static IPv4 /IPv6 routing |
| Remote management protocol | SNMP1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI |
| Features |
Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, sFlow, RSPAN |
| Compliant standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Status indicators | System, Master, Fan, Stack ID, Link/Speed per port |
| Expansion and Connectivity | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE, 2 x 10GBase-T/SFP+ combo, 2 x SFP+, 1 x console - RJ45 |
| Power | |
| Power supply | Internal |
| Voltage required | AC 120/230V (50/60 Hz) |
| Width | 17.3 in. (440 mm) |
| Depth | 13.8 in. (350 mm) |
| Height | 1.73 in. (44 mm) |
| Weight | 12.83 lb (5.82 kg) |
| Cables included | 1 x console cable |
| Compliance standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Manufacturer Warranty | |
| Service and support | Enhanced limited lifetime warranty |
| Service and support details | Next business day hardware replacement. Software updates. 1-year complimentary telephone and online technical support. |
| Environmental Parameters | |
| Minimum operating temperature | 32-F (0-C) |
| Maximum operating temperature | 122-F (50-C) |
| Humidity range operating | 10-90% (noncondensing) |
| Minimum storage temperature | -4-F (-20-C) |
| Maximum storage temperature | 158-F (70-C) |
| Humidity range storage | 10-90% (noncondensing) |
