Product Details:
|
| Branch: | Cisco | Model: | C9200L-24P-4X-A |
|---|---|---|---|
| Ports: | 24 Ports Full PoE+ , 4x 10G Fixed Uplinks | AC Power Supply: | PWR-C5-600WAC |
| DRAM / Flash: | 2G / 4G | Condition: | New With 1Year Warranty |
| High Light: | poe ethernet switch,fiber optic network switch |
||

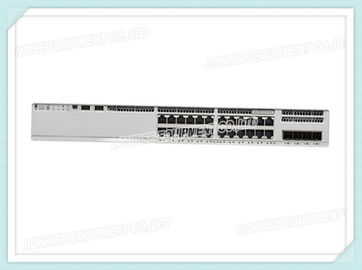

C9200L-24P-4X-A is the Catalyst 9200L 24 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
C9200L-24P-4X-A Specification |
|
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Mean time between failures (hours) | 390,310 |
