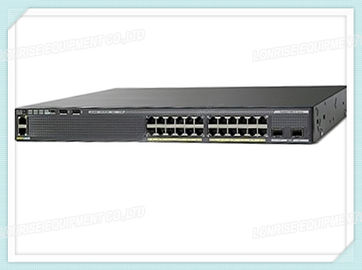

Product Details:
|
| Product Name: | Ethernet Network Switch | Product Model: | WS-C2960XR-24TD-I |
|---|---|---|---|
| Ports: | 24x10/100/1000+2x10G SFP | Advanced Switching: | Layer 3 |
| Warranty: | 2 Years | Lead Time: | Within 2 - 3 Days After Received Payment |
| High Light: | optical ethernet switch,fiber optic network switch |
||
| Device Type | Switch - 24ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24x 10/100/1000 + 2x10G SFP+ |
| Performance | Switching capacity:216 Gbps ¦ Forwarding performance: 130.9Mpps |
| Power Over Ethernet (PoE) | No |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | HSRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Features | Layer 2 switching, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NetFlow, Per-VLAN Rapid Spanning Tree (PVRST), PoE+, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support) |
| General | |
| Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, |
| Device Type | Switch - 24ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 128 MB |
| Ram | 512 MB |
| Status Indicators | Link/activity, Port duplex mode, Port status, Port transmission speed, System |
| Dimensions & Weight | |
| Depth | 40.8 cm |
| Height | 4.45 cm |
| Weight | 6.6 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP+ ¦ 1 x USB - Type A ¦ 1 x USB - Type B ¦ 1 x console - RJ-45 ¦ 1 x management (LAN) - RJ-45 |
| Manufacturer Warranty | |
|
Service Support
|
Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 1Year |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CB, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, KN22, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Mtbf | 440,880 hours |
