Product Details:
|

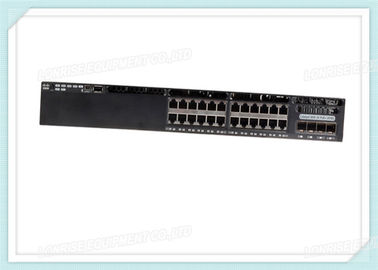

| Part Number: | WS-C3650-24TS-L | Brand: | CISCO |
|---|---|---|---|
| Enclosure Type: | Rack-mountable - 1U | Uplink Interfaces: | 4 X 1G Uplinks |
| Ports: | 24 X 10/100/1000 POE+ Ethernet Ports | Feature Set: | LAN Base |
| High Light: | poe ethernet switch,fiber optic network switch |
||
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 24 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps |
| Ram | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Status Indicators | Port transmission speed, port duplex mode, system, active, status |
| Dimensions & Weight | |
| Depth | 44.8 cm |
| Height | 4.4 cm |
| Weight | 6.87 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 96% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 24 x 1000Base-T - RJ-45 ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 4 x 1000Base-X - SFP - uplink |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Mtbf | 661,800 hours |
| Rack Mounting Kit | Included |
