Product Details:
|
| Brand: | Cisco | Model: | WS-C3850-12S-E |
|---|---|---|---|
| Number Of LAN Ports: | 12 | Number Of Network Ports: | 12 |

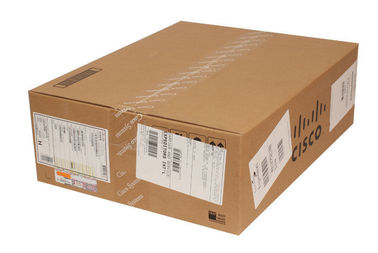

| Network Ports: | SFP | Condition: | New In Box |
| High Light: | optical ethernet switch,poe ethernet switch |
||

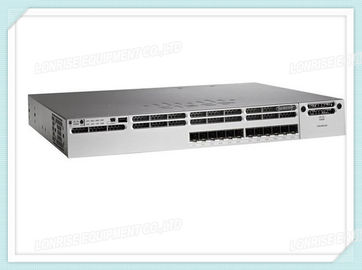

| Cisco Catalyst 3850-12S-E - switch - 12ports - Managed - desktop, rack-mountable | |
| Device Type | Switch - 12 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 Gigabit SFP |
| Power Over Ethernet (PoE) | No |
| Performance | Switching capacity: 68Gbps ¦ Forwarding performance: 65.47 Mpps |
| Features | Layer 3 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, |
WS-C3650-12S-E Extended Specification
| General | |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3 |
| Device Type | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity: 68 Gbps ¦ Forwarding performance: 65.47 Mpps |
| Ram | 4 GB |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Routing Protocol | BGP-4, EIGRP, EIGRP for IPv6, IS-IS, OSPFv3, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng |
| Status Indicators | PoE, Port duplex mode, Port transmission speed, Status, System |
| Dimensions & Weight | |
| Depth | 44.8 cm |
| Height | 4.4 cm |
| Weight | 7.26 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 113 °F |
| Max Storage Temperature | 158°F |
| Min Operating Temperature | 23°F |
| Min Storage Temperature | -40 °F |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 12 x 1000Base-T - RJ-45 -SFP ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1year |
