Product Details:
|
| Product Name: | Ethernet Network Switch | Product Model: | WS-C3850-48F-E |
|---|---|---|---|
| Ports: | 48 X 10/100/1000 POE+ | Advanced Switching: | Layer 3 |
| Warranty: | 2 Years | Lead Time: | Within 2 - 3 Days After Received Payment |
| Highlight: | optical ethernet switch,poe ethernet switch |
||

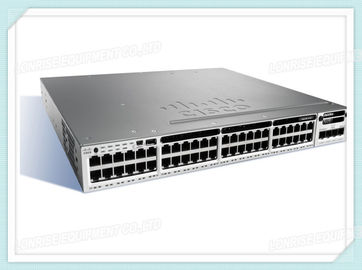

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco-*-s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
| Features | ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service |
| General | |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
| Ram | 4 GB |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Status Indicators | PoE, Port duplex mode, Port transmission speed, Status, System |
| Dimensions & Weight | |
| Depth | 44.8 cm |
| Height | 4.4 cm |
| Weight | 7.21 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 113 °F |
| Max Storage Temperature | 115 °F |
| Min Operating Temperature | 23 °F |
| Min Storage Temperature | -40 °F |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 48 x 1000Base-T - RJ-45 PoE ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1Year |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Mtbf | 241,050 hours |
| Rack Mounting Kit | Included |
