Product Details:
|
| Product Name: | Ethernet Network Switch | Product Model: | WS-C3850-48T-E |
|---|---|---|---|
| Ports: | 48 X 10/100/1000 | Advanced Switching: | Layer 3 |
| Warranty: | 2 Years | Lead Time: | Within 2 - 3 Days After Received Payment |
| High Light: | poe ethernet switch,fiber optic network switch |
||

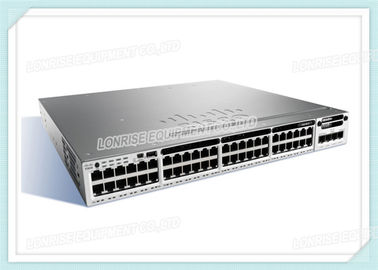

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco-*-s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
WS-C3850-48T-E Extended Specification
| General | |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity:176Gbps |
| Ram | 4 GB |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Status Indicators | Power |
| Dimensions & Weight | |
| Depth | 44.8 cm |
| Height | 4.4 cm |
| Weight | 7.26 kg |
| Width | 44.5 cm |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 48 x 1000Base-T - RJ-45 - ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1year |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Mtbf | 300,760 hours |
| Rack Mounting Kit | Included |
