Product Details:
|
| Brand: | Cisco | Ports: | 48 X 10/100/1000 (PoE+) + 2 X 10 Gigabit SFP+ |
|---|---|---|---|
| Switching Capacity:: | 176 Gbps | Forwarding Performance:: | 130.95 Mpps |
| High Light: | poe ethernet switch,fiber optic network switch |
||
Overview

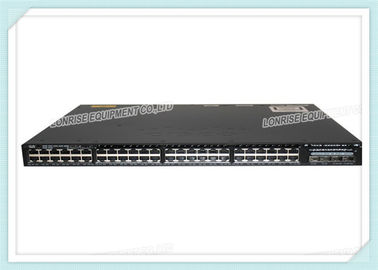

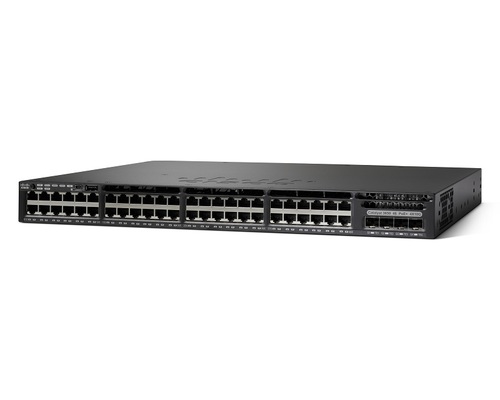

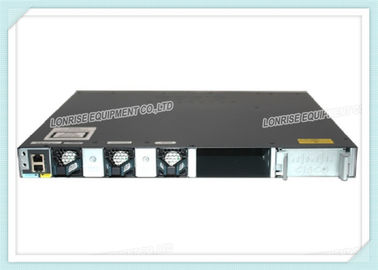

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).
This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.
Specifications:
| Brief Specifications: | |
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
| Features | Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol ( |
| General | |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
| Ram | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Status Indicators | Port transmission speed, port duplex mode, system, active, status, PoE |
| Dimensions & Weight | |
| Depth | 48.6 cm |
| Height | 4.4 cm |
| Weight | 7.8 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 96% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 48 x 1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 2 x 1000Base-X - SFP - uplink ¦ 2 x 10GBase-X - SF |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Mtbf | 383,760 hours |
| Rack Mounting Kit | Included |
| Mounting Kit | Included |
| Software Included | Cisco IOS LAN Base |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Redundancy | Optional |
| Power Provided | 1025 Watt |
| Power Installed Qty | 1 (installed) / 2 (max) |
| Power Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Device | Internal power supply - hot-plug |
| Power Features | Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol ( |
| Bundled Services | Limited lifetime warranty |
| Manufacturer Warranty | Limited lifetime warranty |
| Dimensions | x |
| Power | PoE+ |
| Routing Protocol | Static IP routing |
| Jumbo Frame Support | 9198 bytes |
| Capacity | IPv4 routes: 24000 ¦ Virtual interfaces (VLANs): 255 ¦ Switched virtual interfaces (SVIs): 1000 |
| Poe Budget | 775 W |
