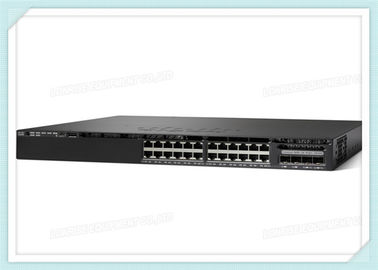

Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink

Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink
Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink

Large Image :  Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: WS-C3650-24PD-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: NEGOTIABLE
Packaging Details: NEW IN BOX
Delivery Time: 1~2 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 30 pcs per month

Cisco Ethernet Network Switch WS-C3650-24PD-L 24 Port Gigabit PoE+ Switch With 2x10G Uplink

Description
Brand: Cisco Ports: 24 X 10/100/1000 (PoE+) + 2 X 10 Gigabit SFP+
Switching Capacity:: 88 Gbps Forwarding Performance:: 65.47 Mpps
High Light:

poe ethernet switch

,

fiber optic network switch

Cisco WS-C3650-24PD-L 24 Port Gigabit PoE+ switch with 2x10G uplink,Layer 3





Overview



The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).

This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.

Cisco Catalyst 3650-24PD-L - switch - 24 ports - Managed - desktop, rack-mountable

Specifications:



Brief specifications
Device Type Switch - 24 ports - Managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
Performance Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps
Features Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support,
Extended Specification
General
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type Switch - 24 ports - Managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Flash Memory 2 GB
Mac Address Table Size 32000 entries
Performance Switching capacity: 88 Gbps ¦ Forwarding performance: 65.47 Mpps
Ram 4 GB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Status Indicators Port transmission speed, port duplex mode, system, active, status, PoE
Dimensions & Weight
Depth 44.8 cm
Height 4.4 cm
Weight 7.26 kg
Width 44.5 cm
Environmental Parameters
Humidity Range Operating 5 - 96% (non-condensing)
Max Operating Temperature 45 °C
Max Storage Temperature 70 °C
Min Operating Temperature -5 °C
Min Storage Temperature -40 °C
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x Stacking Module
Interfaces 24 x 1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 2 x 1000Base-X - SFP - uplink ¦ 2 x 10GBase-X - SF
Manufacturer Warranty
Service Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days
Miscellaneous
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Mtbf 528,280 hours
Rack Mounting Kit Included
WS-C3650-24PD-L Others
Mounting Kit Included
Software Included Cisco IOS LAN Base
Power Redundancy Scheme 1+1 (with optional power supply)
Power Redundancy Optional
Power Provided 640 Watt
Power Installed Qty 1 (installed) / 2 (max)
Power Voltage Required AC 120/230 V ( 50/60 Hz )
Power Device Internal power supply - hot-plug
Power Features Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support,
Bundled Services Limited lifetime warranty
Manufacturer Warranty Limited lifetime warranty
Dimensions x
Power PoE+
Routing Protocol Static IP routing
Jumbo Frame Support 9198 bytes
Capacity IPv4 routes: 24000 ¦ Virtual interfaces (VLANs): 255 ¦ Switched virtual interfaces (SVIs): 1000
Poe Budget 390 W
