Product Details:
|
| Status Indicators: | Active, PoE, Port Duplex Mode, Port Transmission Speed, Status, System | Transmission Rate: | 10/100/1000 (PoE+) |
|---|---|---|---|
| Enclosure Type: | Desktop, Rack-mountable 1U | PoE Budget:: | 30 W |
| Subtype: | Gigabit Ethernet | Function: | LACP,POE,QoS,SNMP,Stackable, |
| Warranty: | 2 Years | Lead Time: | Within 2 - 3 Days After Received Payment |
| High Light: | optical ethernet switch,poe ethernet switch |
||

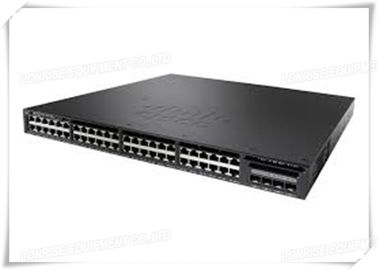

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.
|
Product Code
|
WS-C3650-48FS-S
|
|
Enclosure Type
|
Rack-mountable - 1U
|
|
Feature Set
|
IP Base
|
|
Uplink Interfaces
|
4 x 1G SFP
|
|
Ports
|
48 x 10/100/1000 (POE+)
|
|
Available PoE Power
|
775W
|
|
Maximum stacking number
|
9
|
|
Stack bandwidth
|
160 Gbps
|
|
Forwarding Performance
|
77.37Mpps
|
|
Switching Capacity
|
176 Gbps
|
|
RAM
|
4 G
|
|
Flash Memory
|
2 G
|
The Modules, Licenses and Accessories
Table 2 shows some recommended modules, licenses and accessories of this switch.
|
Models
|
Description
|
|
C3650-STACK-KIT=
|
Cisco Catalyst 3650 Stack Module Spare
|
|
L-C3650-48-S-E=
|
C3650-48 IP Base to IP Services Electronic RTU License
|
|
PWR-C2-1025WAC=
|
1025W AC Config 2 Secondary Power Supply
|
|
PWR-C2-640WDC=
|
640W DC Config 2 Secondary Power Supply
|
|
CAB-CONSOLE-RJ45
|
Console Cable 6ft with RJ45 and DB9F
|
|
CAB-CONSOLE-USB
|
Console Cable 6 ft with USB Type A and mini-B
|
