Product Details:
|
| Brand: | Cisco | Parts Number: | VWIC3-1MFT-G703 |
|---|---|---|---|
| Form Factor: | 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card | Number Of Ports: | 1 |
| High Light: | cisco service module,cisco network module |
||

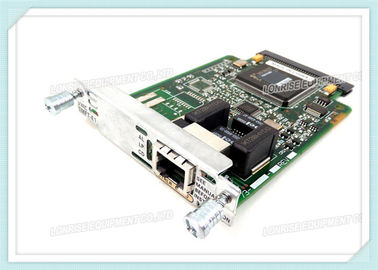

Cisco VWIC3-1MFT-G703 1-Port G.703 Multiflex Voice/WAN Interface Card, ethernet network module
Overview
NIB Cisco VWIC3-1MFT-G703 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card
Cisco third generation Voice / WAN T1/E1 interface card supports voice and data application on Cisco ISR 2 1900/2900/3900 series platform. This module integrate with 1 T1/E1 interfaces can configure for either unstructured E1 (G.703) or structured framed E1 (G.704) to support voice or WAN connectivity.
| Manufacturer | Cisco |
| Part Number | VWIC3-1MFT-G703 |
| Device Type | Interface module |
| Form factor | 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card |
| Specifications | |
| Number of Ports | 1 |
| T1 Support | Yes |
| E1 Support | Yes |
| Unstructured E1 (G.703) Support | Yes |
| Data Support WIC Mode | Yes |
| Voice Support VIC* | Yes |
| Drop-and-Insert Multiplexing | Yes |
| Configuration Comparison | |
| Serial Data (channel-group*) | 2 total 2 per port |
| Voice CAS (ds0-group**) | 24 total (T1) 31 total (E1) 1 per timeslot |
| PRI (pri-group***) | 1 total 1 per port |
| Drop & Insert (tdm-group****) | 24 total (T1) 31 total (E1) 1 per timeslot |
| Network Management Features | |
| Telnet or Console | Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI |
| Simple Network Management Protocol (SNMP) |
• Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user • Standard MIB (MIB II) • Cisco Integrated DSU/CSU MIB • RFC 1406 T1 MIB, Including Alarm Detection and Reporting |
| SNMP Traps | Generated in response to alarms |
Related products:
| VWIC3-1MFT-T1/E1 | 1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card |
| VWIC3-2MFT-T1/E1 | 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card |
| VWIC3-4MFT-T1/E1 | 4-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card |
| VWIC3-1MFT-G703 | 1-Port G.703 Multiflex Trunk Voice/WAN Interface Card |
| VWIC3-2MFT-G703 | 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card |
