Product Details:
|
| Brand: | Cisco | Parts Number: | VWIC3-2MFT-G703 |
|---|---|---|---|
| Form Factor: | 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card | Number Of Ports: | 2 |
| High Light: | cisco router switch module,cisco network module |
||

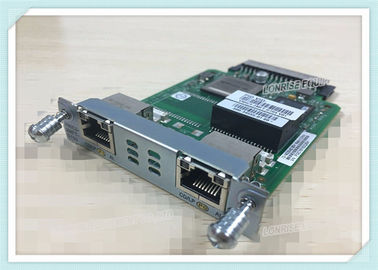

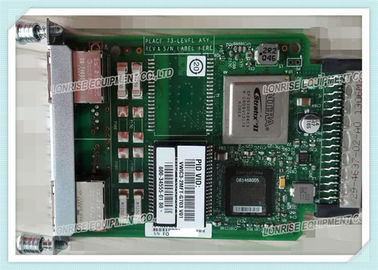

CISCO VWIC3-2MFT-G703 2-Port 3rd Gen Multiflex Trunk Voice/WAN Interface Card
Overview
New Sealed VWIC3-2MFT-G703 Cisco Voice/WAN Interface Card G.703 Multiflex Trunk
Cisco third generation Voice / WAN T1/E1 interface card supports both voice and data application on Cisco ISR 2 1900/2900/3900 series platform. This module integrate with 2 T1/E1 interfaces which one port can configure for unstructured E1 (G.703) and the other port configure structured framed E1 (G.704) to support voice or WAN connectivity.
| VWIC3-2MFT-G703 | |
| Manufacturer | Cisco |
| Part Number | VWIC3-2MFT-G703 |
| Device Type | Interface module |
| Form factor | 2-Port G.703 Multiflex Trunk Voice/WAN Interface Card |
| Specifications | |
| Number of Ports | 2 |
| T1 Support | Yes |
| E1 Support | Yes |
| Unstructured E1 (G.703) Support | Yes |
| Data Support WIC Mode | Yes |
| Voice Support VIC* | Yes |
| Drop-and-Insert Multiplexing | Yes |
| Configuration Comparison | |
| Serial Data (channel-group*) | 2 total 2 per port |
| Voice CAS (ds0-group**) | 48 total (T1) 62 total (E1) 1 per timeslot |
| PRI (pri-group***) | 2 total 1 per port |
| Drop & Insert (tdm-group****) | 48 total (T1) 62 total (E1) 1 per timeslot |
| Network Management Features | |
| Telnet or Console | Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI |
| Simple Network Management Protocol (SNMP) |
• Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user • Standard MIB (MIB II) • Cisco Integrated DSU/CSU MIB • RFC 1406 T1 MIB, Including Alarm Detection and Reporting |
| SNMP Traps | Generated in response to alarms |
