Product Details:
|
| Brand: | Cisco | Model: | VS-S720-10G-3C |
|---|---|---|---|
| Per-slot Switching Capacity: | 40 Gbps | Ports: | 2 * 10G X2, 2 * 1G SFP, 1 * 10/100/1000 GE |
| Devide Tyde: | Control Processor | ||
| High Light: | cisco spa module,cisco router cards |
||

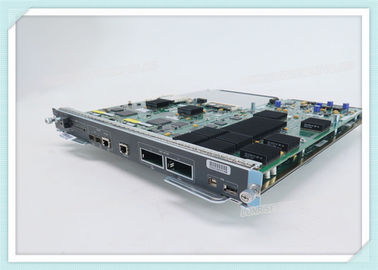

Cisco VS-S720-10G-3C 6500 Series Catalyst Virtual Switching Supervisor Engine
Cisco Catalyst 6500 Series Virtual Switch supervisor engine VS-S720-10G-3C combines 2 * X2-base 10 Gigabit Ethernet uplinks and hardware-based layer2-4 switching feature set which enables enriched Layer 3 routing, MPLS, VPNs, QoS and security features. The combination enables high availability, operational efficiency and increased throughput with scalable performance with ease of deployment.
The supervisor engine VS-S720-10G-3C is a primary factor of the Cisco VSS 1440 Virtual Switching System, the technology pools multiple Catalyst 6500 Series switches into single virtual switch, increasing the system bandwidth to 1.4 Tbps. Configuring VSS with supervisor engine VS-720-10G-3C by using Multi-chassis EtherChannel brings numerous advantages to networks, such as increasing operational efficiency, boosting nonstop communication, providing slot efficiency, increasing throughput and improving resiliency.
Cisco Catalyst Supervisor engine VS-S720-10G-3C support for all Cisco Catalyst 6500 Series interface module classes with offering enhanced forwarding capacity and system bandwidth along with system virtualization through VSS 1440. The supervisor engine VS-S720-10G-3C with 10 Gigabit Ethernet uplinks has been proven its ability to meet the requirements of network in various applications, such as enterprise backbone, data center or campus access and Metro Ethernet.
Specifications:
VS-S720-10G-3C Specification |
|
| Product Description | Catalyst 6500 Supervisor engine 720-10G-VSS (PFC 3C) |
| Devide Tyde | Control Processor |
| Ports | 2 * 10G X2, 2 * 1G SFP, 1 * 10/100/1000 GE |
| Console ports | RS-232 |
| Centralized switching capacity | 720 Gbps |
| Per-slot switching capacity | 40 Gbps |
| Compatibility | ● Cisco 6500 Catalyst Series ● Cisco 7600 Catalyst Series |
| FNF (Flexible NetFlow) entries | 128000 |
| Forn Factor | Plug-in Module |
| Memory | ●WS-SUP720 supports 512MB of DRAM for the route processor and 512 MB for the switch processor ●64MB or 512MB (s/w image dependent) Boot Flash for SP switch processor and 64-MB of Boot Flash for the route processor |
| Options | Removable storage: 64MB, 128 MB, 256 MB, 512 MB (Compact Flash) |
| Throughput (in hardware) | ● 450 Mpps for IPv4 ● 225 Mpps for IPv6 ● 450Mpps for Layer 2 Bridging |
| Routing entries | ● IPV4: 256,000 ● IPV6: 128,000 |
| NetFlow Entries | 128,000 |
| Security ACL entries | 32,000 |
| Number of interfaces with unique ACLs | 512 |
| MAC ACLs on IP | No |
| Aggregate Traffic Rate-Limiting Policers | 1,023 |
| NAT | Hardware assisted |
| DRAM | ● MEM-S3-1GB: Catalyst 6500 1GB SP DRAM for Sup720 and Sup720-3B ● MEM-MSFC2-512MB: Catalyst 6500 512MB DRAM on the MSFC2 or SUP720 MSFC3 |
