Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base

Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base
Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base

Large Image :  Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base

Product Details:
Place of Origin: USA
Brand Name: Cisco
Certification: CE
Model Number: WS-C3560X-48T-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1~2 days
Payment Terms: T/T, Western Union, Paypal, Alipay, Wechat
Supply Ability: 25 units per month

Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base

Description
Brand: Cisco Model: WS-C3560X-48T-L
Ports: 48 X 10/100/1000 Ethernet Ports DRAM: 256 MB
Flash Memory: 64 MB
High Light:

optical ethernet switch

,

fiber optic network switch

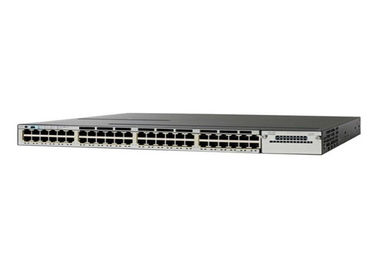

Cisco WS-C3560X-48T-L Catalyst 3560X 48-Port Gigabit Ethernet Switch LAN Base

Overview

Cisco Catalyst WS-C3560X-48T-L is 48 Gigabit Ethernet ports standalone switch with no stacking option in LAN base feature set. Four optional network modules and license-base software feature offer flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. LAN base feature set provide up to 255-Vlans and comprehensive layer 2 feature with static routing and SVI interface supporting. WS-C3560X-48T-L is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activate layer 3 capability, 1005 VLans supporting. WS-C3560X-48T-L switch comes with one default power supply module, customers can purchase additional power supply insert into power supply bay 2 in order to power redundancy.


 Cisco Switch WS-C3560X-48T-L Catalyst 3560X 48 Port Gigabit Ethernet Switch LAN Base 0

Specifications:



WS-C3560X-48T-L data sheet
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-48T-L
Product Type Switch - 48 ports - Managed
Form Factor Rack mountable - 1U
Switch Ports 48 x 10/100/1000 Ethernet Ports Ethernet Ports
Performance Switching capacity : 160 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB : 1 x 4 PIN USB Type A
USB : 1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Supply
Power Device Power supply - redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 46 cm
Height 4.5 cm
Weight 7.3 kg
Rack Mounting Kit Optional
MTBF 186,778 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included Cisco IOS LAN Base
