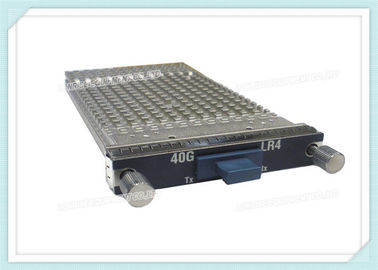

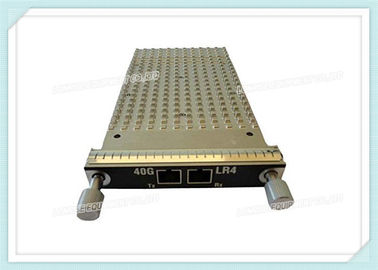

Cisco CFP-40G-LR4 Compatible 40GBASE-LR4 and OTU3 CFP 1310nm 10km SC DOM Transceiver Module
CFP-40G-LR4 Overview
The Cisco® 40GBASE CFP transceiver modules are hot-swappable input/output devices that plug into a 40 Gigabit Ethernet CFP port of a Cisco switch or router. They offer customers versatile 40 Gigabit Ethernet connectivity options in core and distribution layers of data center, enterprise, and service provider networks.
Main Features
-
CFP transceiver module
-
40 Gigabit LAN
-
40GBase-LR4
-
SC/PC single-mode
-
up to 6.2 miles
-
1310 nm
-
for P/N: WS-X6904-40G-2T
-
WS-X6904-40G-2T=
-
WS-X6904-40G-2TXL
-
WS-X6904-40G-2TXL=
CFP-40G-LR4 Specification
Additional Attributes
Parent Product Data :FH: Cisco - expansion module
Connectors (for SD)
Left Connector Type :SC/PC single-mode
Environmental Parameters
Max Operating Temperature :158 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Packaged Quantity :1
Product Line :Cisco
Interface Provided
Connector Qty :X 2
Connector Type :SC/PC single-mode
Gender :Female
Qty :1
Type :Ethernet 40GBase-LR4
Miscellaneous
Compliant Standards :FCC CFR21 Part 1040, GR-326-CORE, IEC 60825-1, Laser Class 1
Networking
Cabling Type :Ethernet 40GBase-LR4
Compliant Standards :IEEE 802.3ba
Connectivity Technology :Wired
Data Link Protocol :40 Gigabit Ethernet
Data Transfer Rate :40 Gbps
Features :Digital Optical Monitoring (DOM) support
Form Factor :Plug-in module
Max Transfer Distance :6.2 miles
Optical Wave Length :1310 nm
Type :CFP transceiver module
Service
Support Details Full Contract Period :90 days
Support Details Type :Limited warranty
Slot Provided
Type :None
Slot Required
Total Qty :1
Type :CFP
Dimensions & Weight
Depth :5.7 in
Height :0.6 in
Weight :10.58 oz
Width :3.2 in
Service & Support
Type : 1 year warranty and replacement
Cisco CFP-40G-LR4 is supported on a wide range of Cisco equipment.
| Cisco CRS 4-40GE-LAN |
| Cisco CRS 4-40GE-LAN/OTN |
| Cisco Nexus 7000 N7K-M202CF-22L |
| Cisco Nexus 9000 N9K-C9372TX-E |
| Cisco 6500 WS-X6904-40G-2T |
| Cisco CRS 2-40GE-LAN/OTN |
